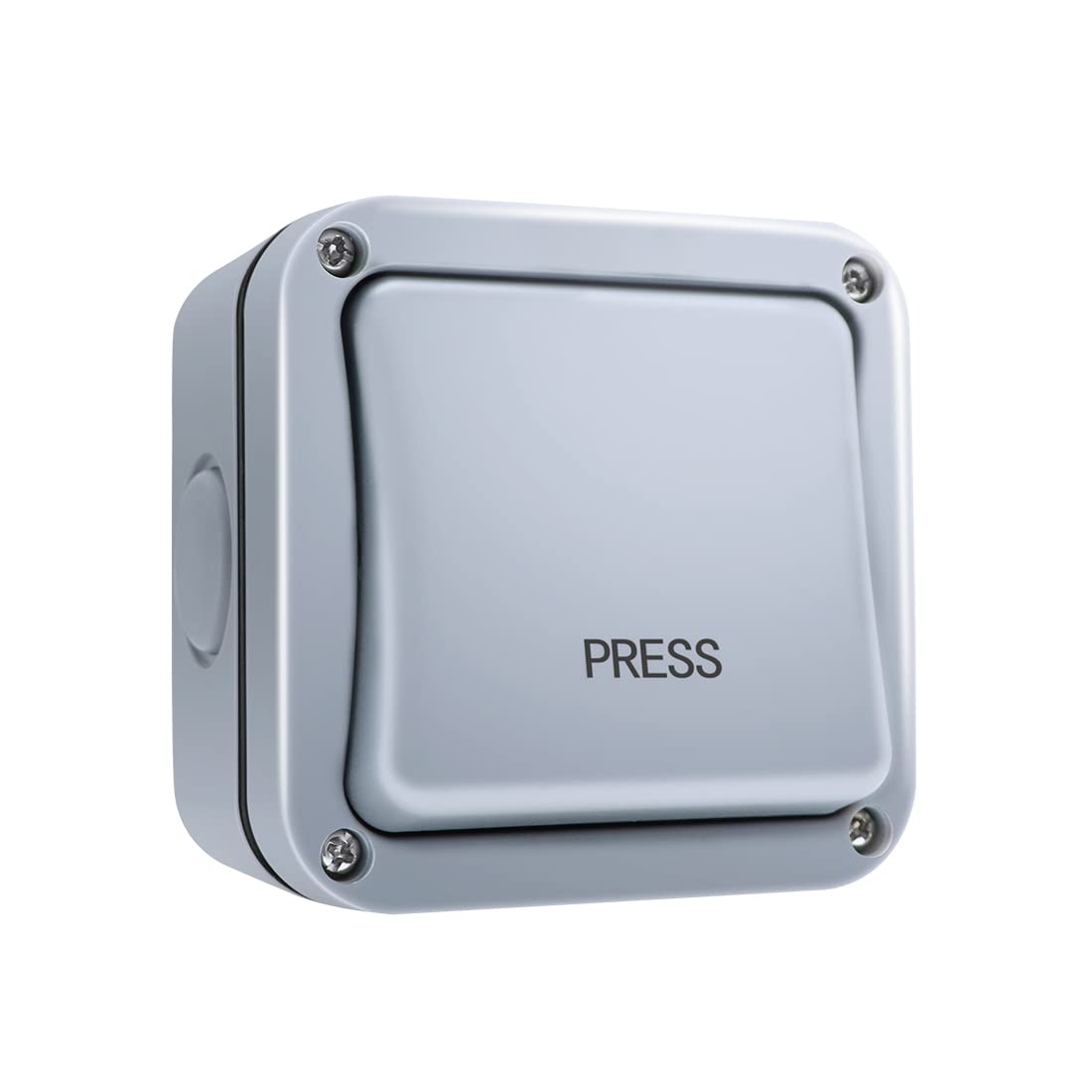

• TC148 waterproof wall push button for gate openers
  • TC148 push button is weatherproof and UV-resistant

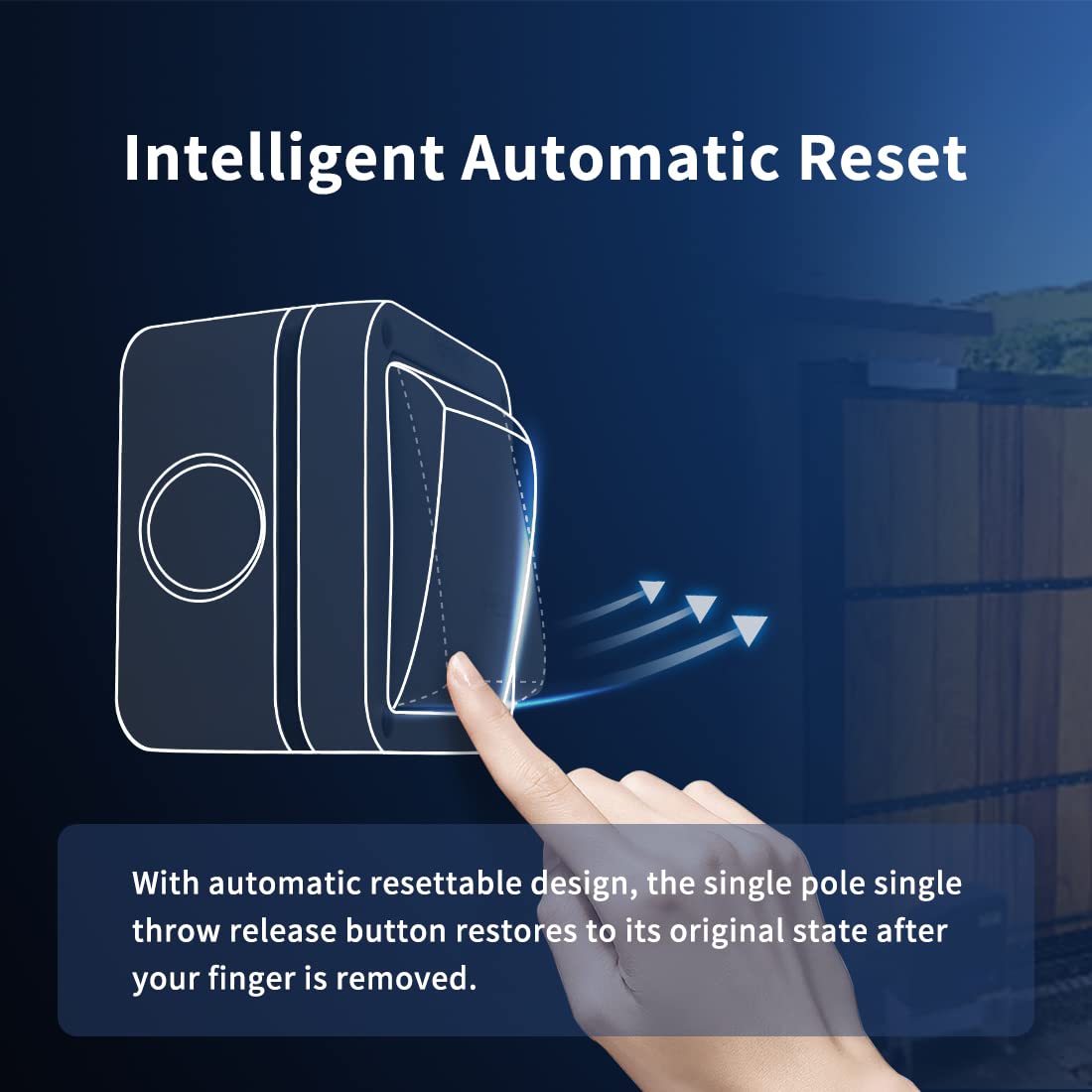

  • TC148 self-resetting push button
  • TC148 push button next to a wooden gate

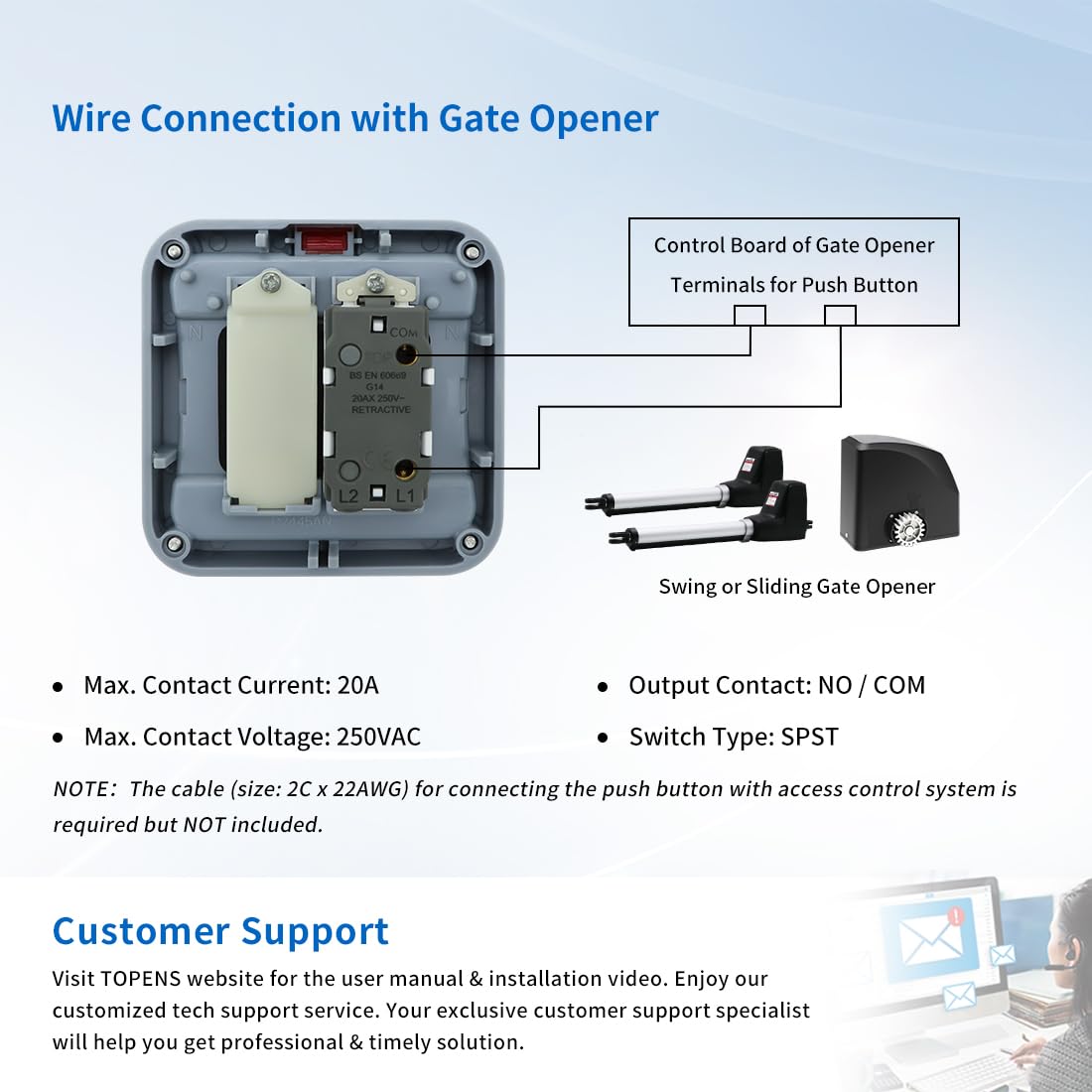

  • TC148 wiring to the gate opener's push-button terminals
  • TC148 works with TOPENS gate openers; compatibility check for other brands

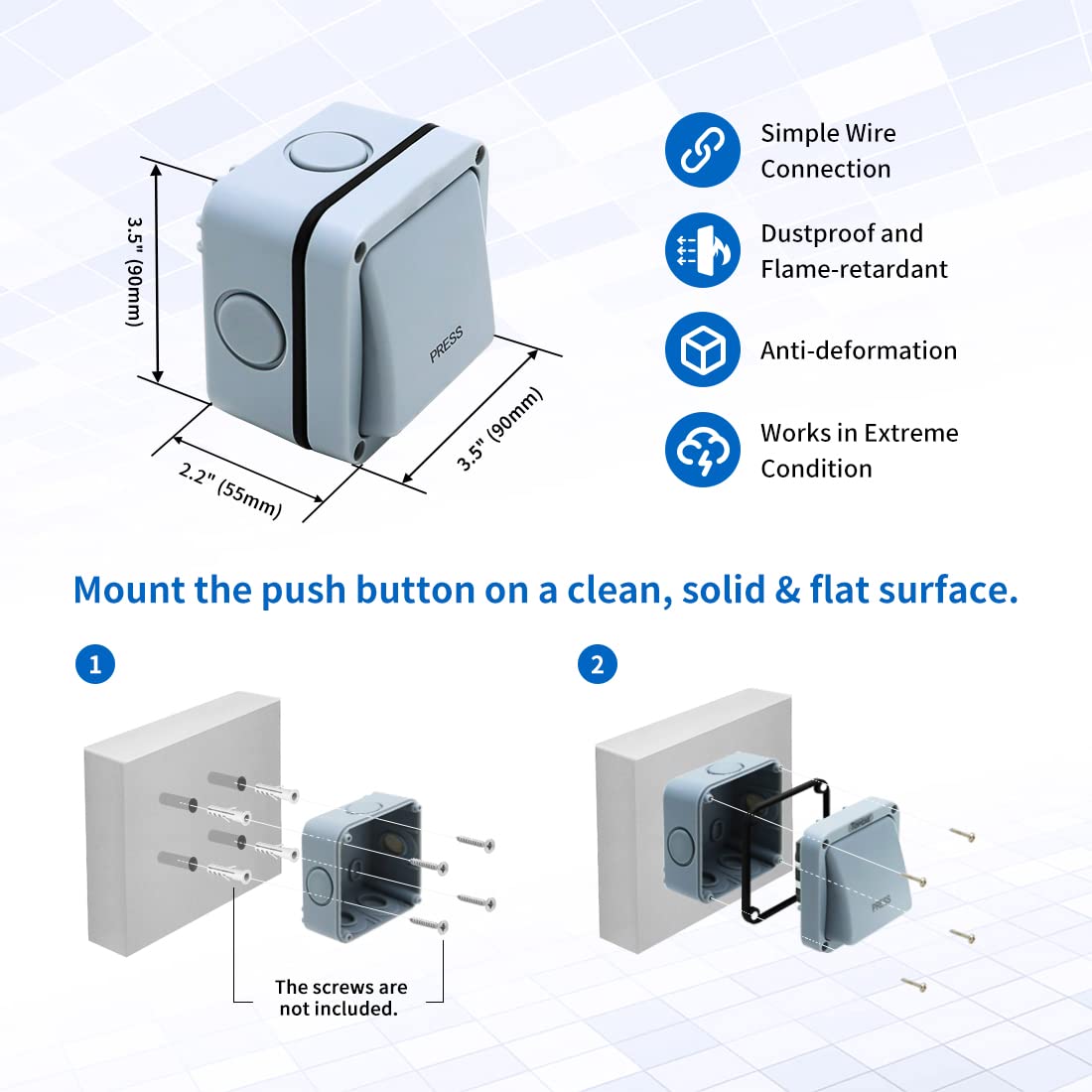

  • TC148 dimensions 90 x 90 x 55 mm and surface mounting

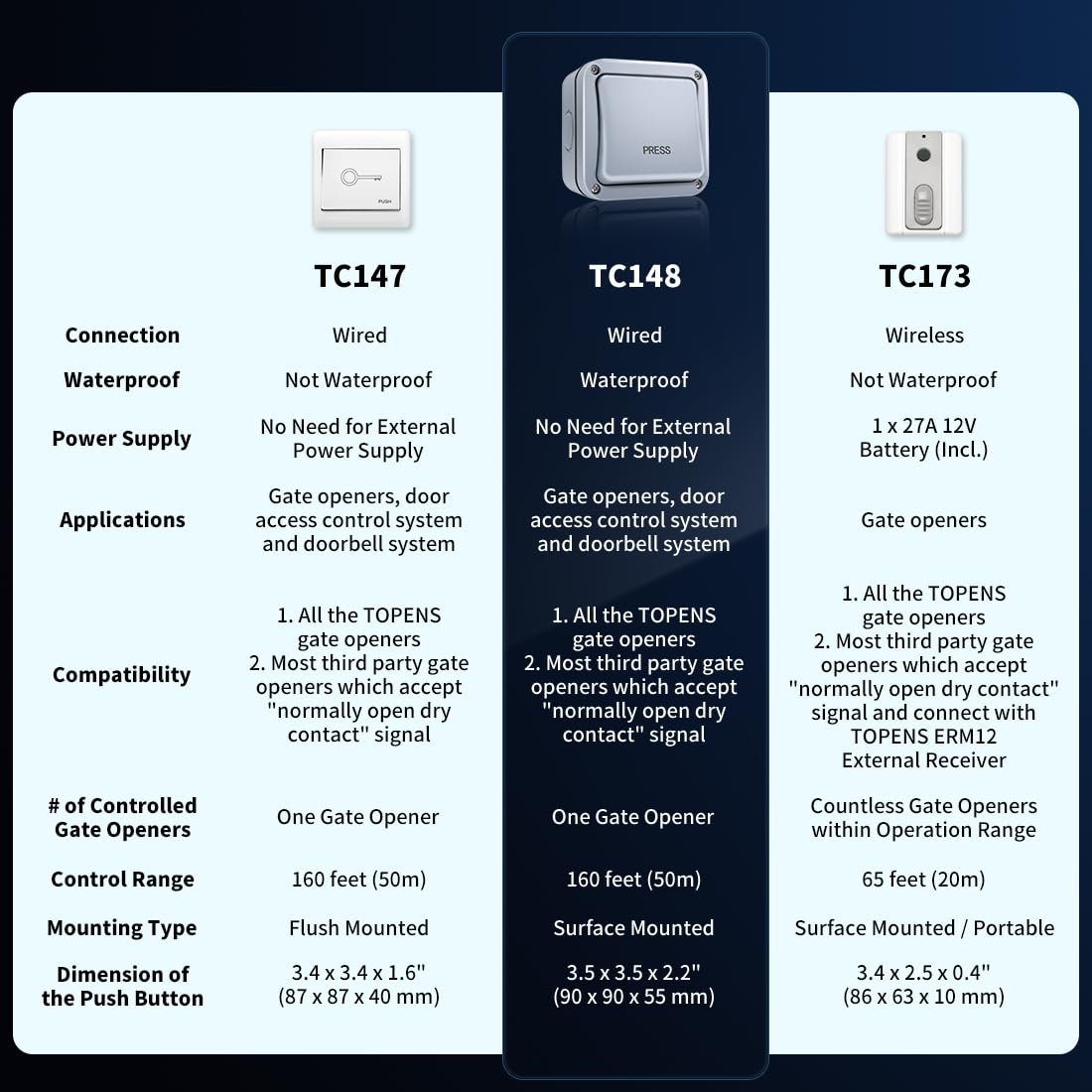

  • Comparison of TC147, TC148 and TC173 push buttons

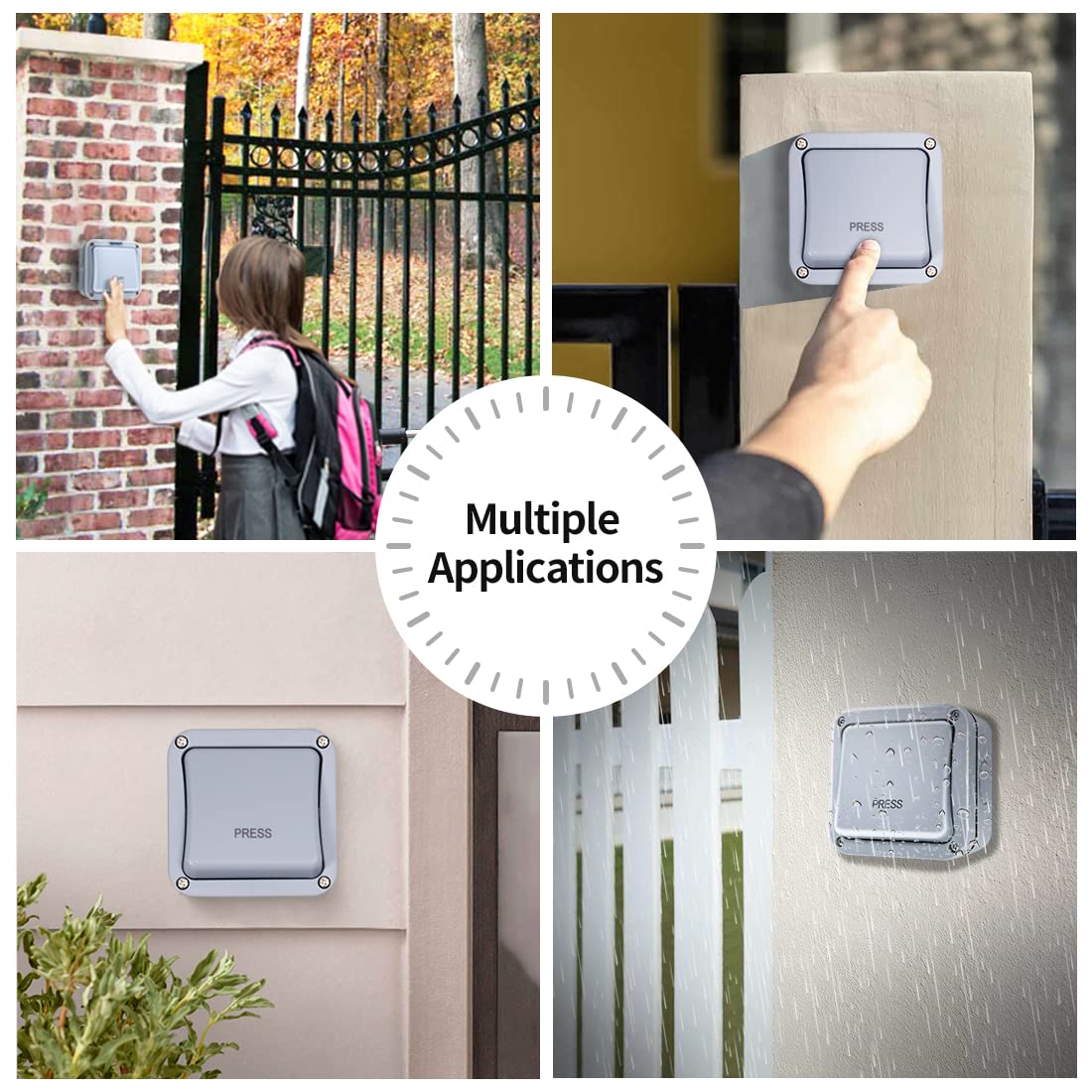

  • TC148 push button mounted on walls and gate posts
1 9

TOPENS

TOPENS TC148 Waterproof Wall Push Button for Gate Openers

TOPENS TC148 Waterproof Wall Push Button for Gate Openers

£39.00 GBP
£39.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

A simple, tough push button for your automatic gate. Fit the TC148 by the front door, inside the garage or on the gate post, and one press opens or closes the gate – handy for walking out, letting visitors in, or for anyone who does not carry a remote.

The sealed weatherproof housing is made for outdoor walls, and the button needs no power supply: it just connects to the push-button terminals on your gate opener's control board.

Key features

  • One press to open or close – momentary, self-resetting button.
  • Outdoor-rated – waterproof and dustproof housing, UV-resistant and flame-retardant.
  • No power needed – a simple dry-contact switch.
  • Two-wire connection – connect to COM and NO, no programming required.
  • Surface mounted – fits on any clean, flat, solid wall or post.
  • Heavy-duty contacts – rated up to 20 A, 250 V AC.

Compatibility

  • All TOPENS gate openers.
  • Most swing and sliding gate openers whose control board accepts a "normally open dry contact" push-button signal.
  • Can also be used with door access control systems and doorbell systems.

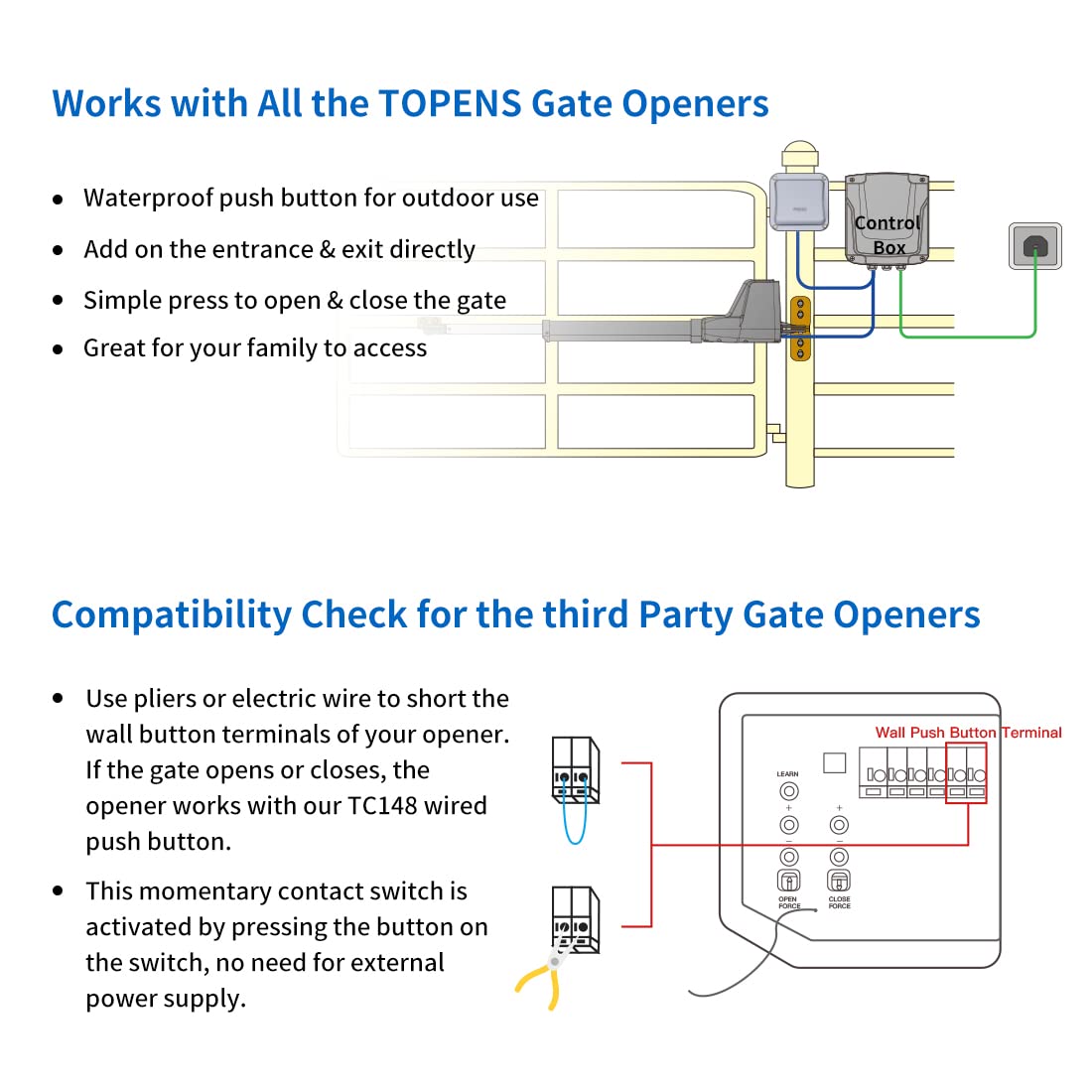

Quick check: bridge the push-button terminals on your control board with a short wire. If the gate moves, the TC148 will work with your opener.

Installation

  1. Fix the back box to a clean, flat, solid surface (screws not included).
  2. Run a 2-core 22 AWG cable (not included) from the control board's push-button terminals to the button.
  3. Connect the cable to the COM and NO terminals and refit the front cover.

Specifications

Brand TOPENS
Model TC148
Connection Wired
Switch type SPST, momentary (self-resetting)
Output contact NO / COM
Max. contact rating 20 A, 250 V AC
Power None required
Mounting Surface mounted
Weather rating Waterproof, outdoor use
Dimensions 90 × 90 × 55 mm

Frequently asked questions

How many buttons can I add?

Several buttons can be connected in parallel to the same push-button terminals – for example one at the entrance and one at the exit.

Is cable included?

No. Use a 2-core 22 AWG cable, run in conduit if it goes underground.

Can I use it for my garage door?

Yes, if the garage door opener has push-button terminals that accept a normally open dry contact.
