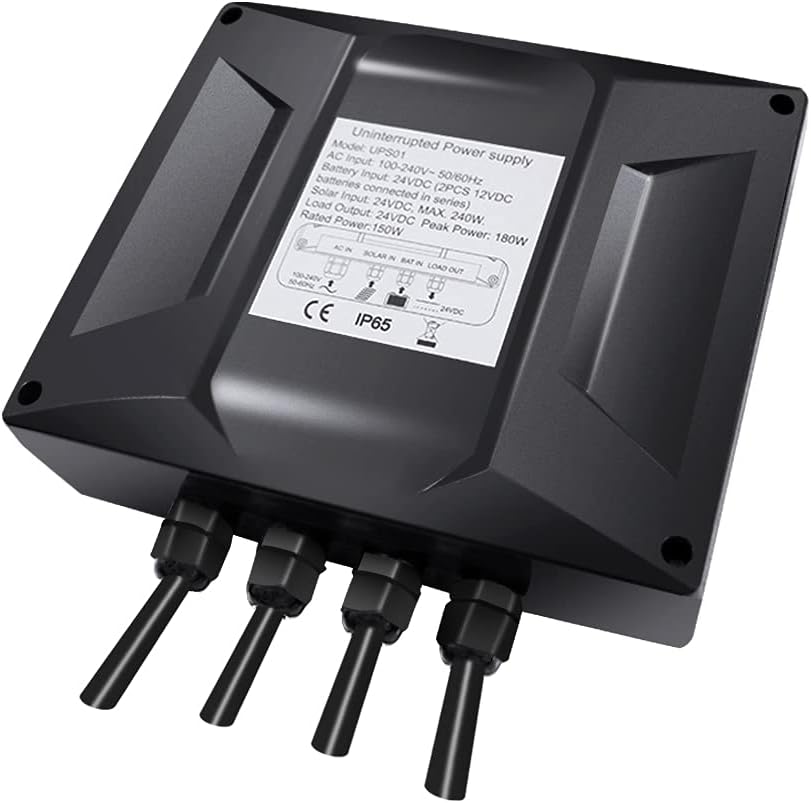

• UPS01 24 V uninterruptible power supply unit

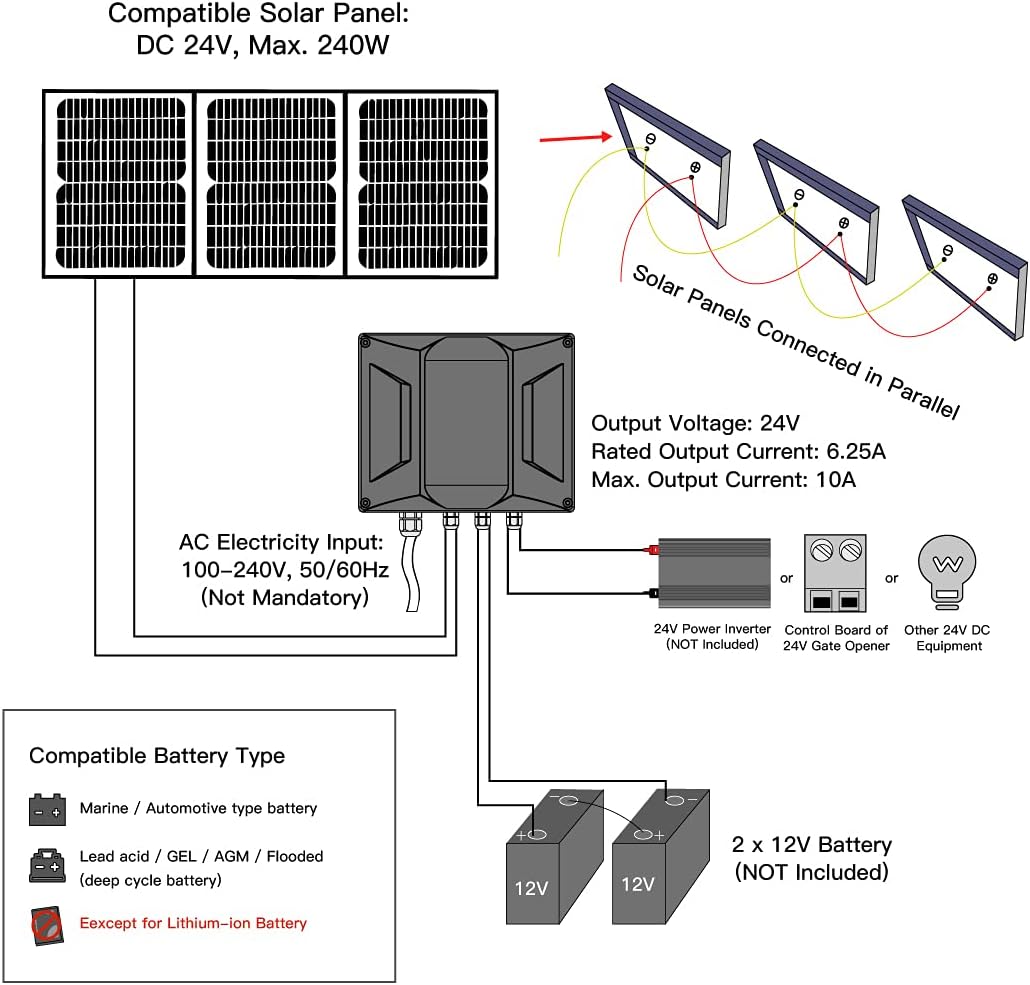

  • UPS01 wiring with solar panels, two 12 V batteries and a 24 V gate opener

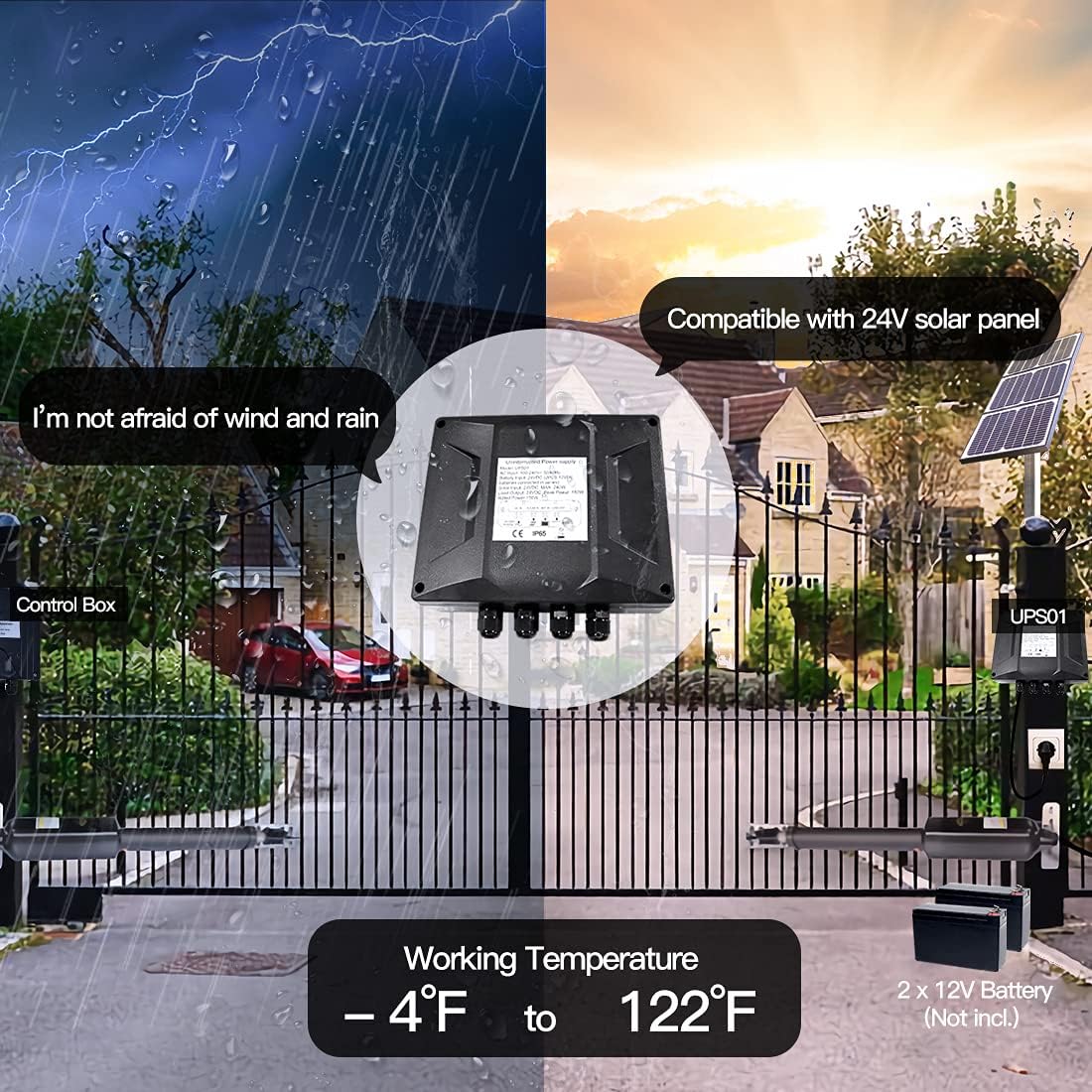

  • UPS01 installed outdoors next to a gate, working from -20 °C to +50 °C

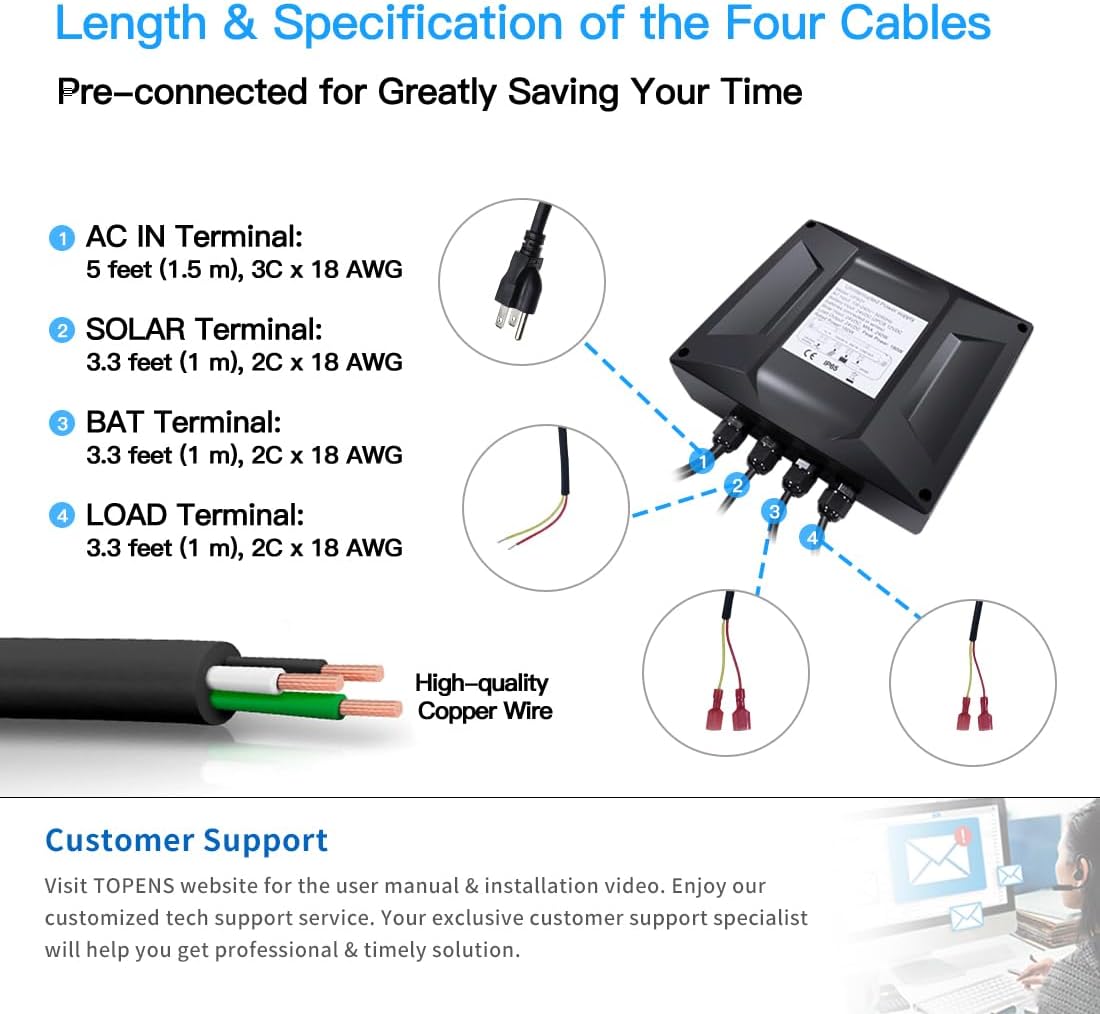

  • UPS01 pre-connected cables: AC in, solar, battery and load

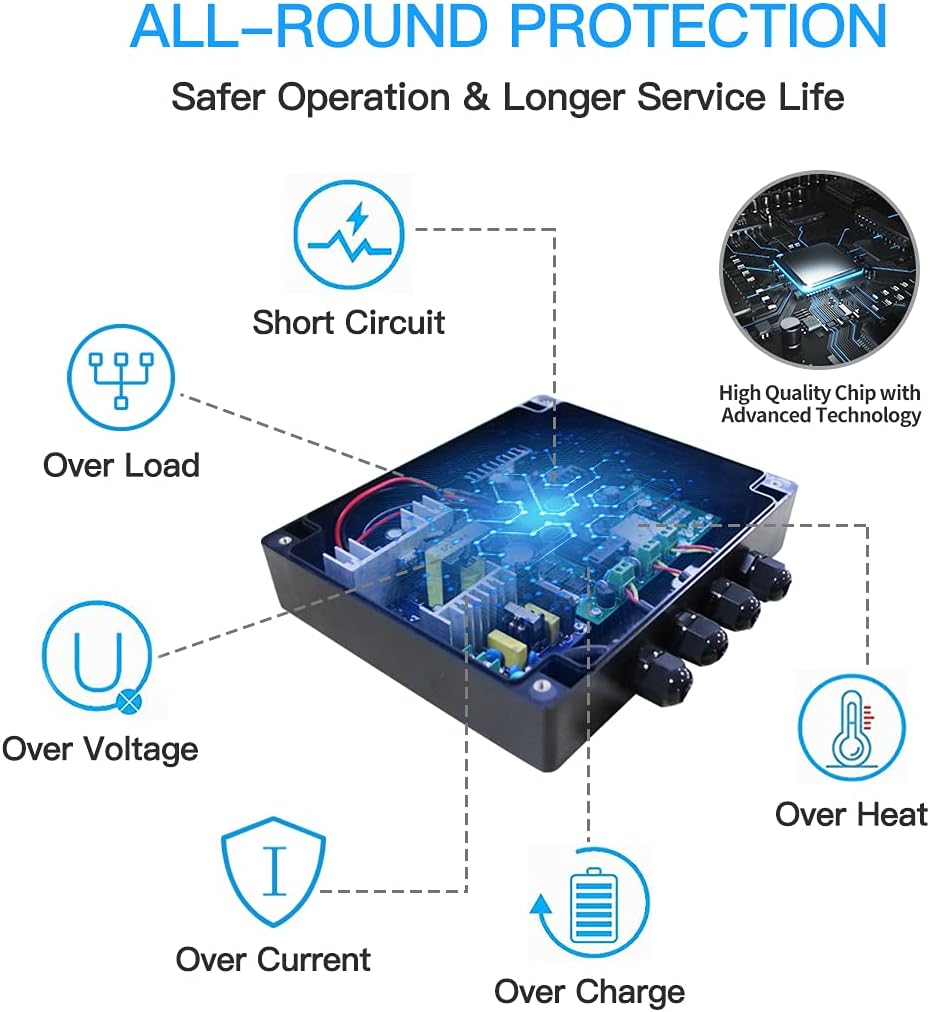

  • UPS01 protection against short circuit, overload, over-voltage and over-heating

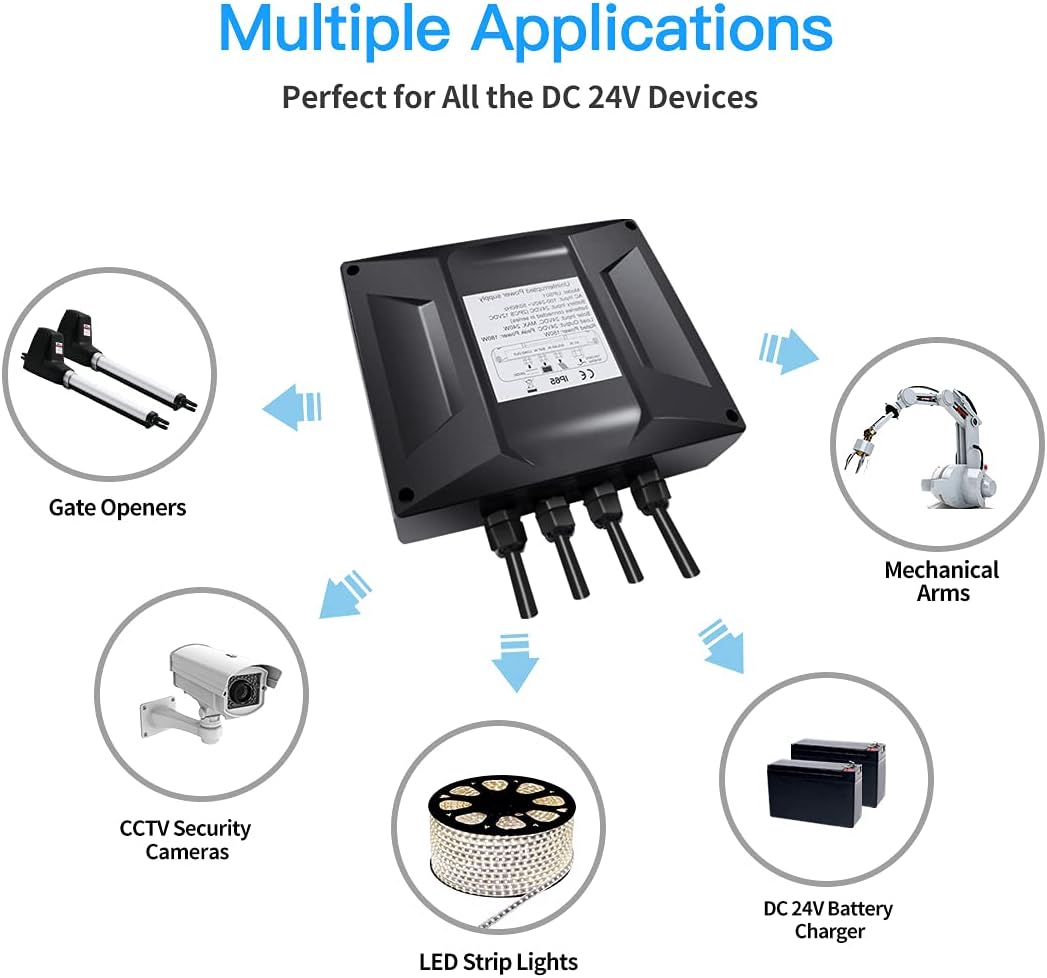

  • Devices the UPS01 can power: gate openers, CCTV, LED strips, 24 V batteries

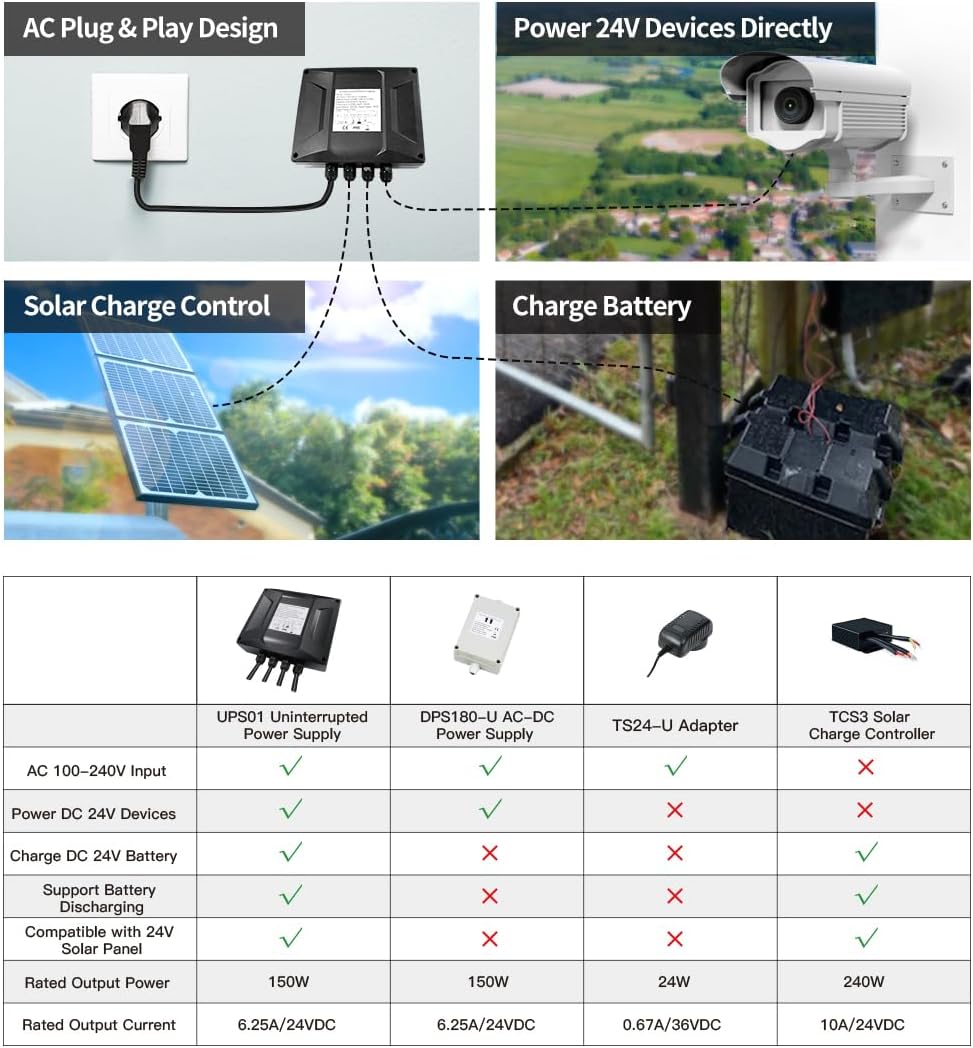

  • UPS01 uses and comparison with other 24 V power supplies

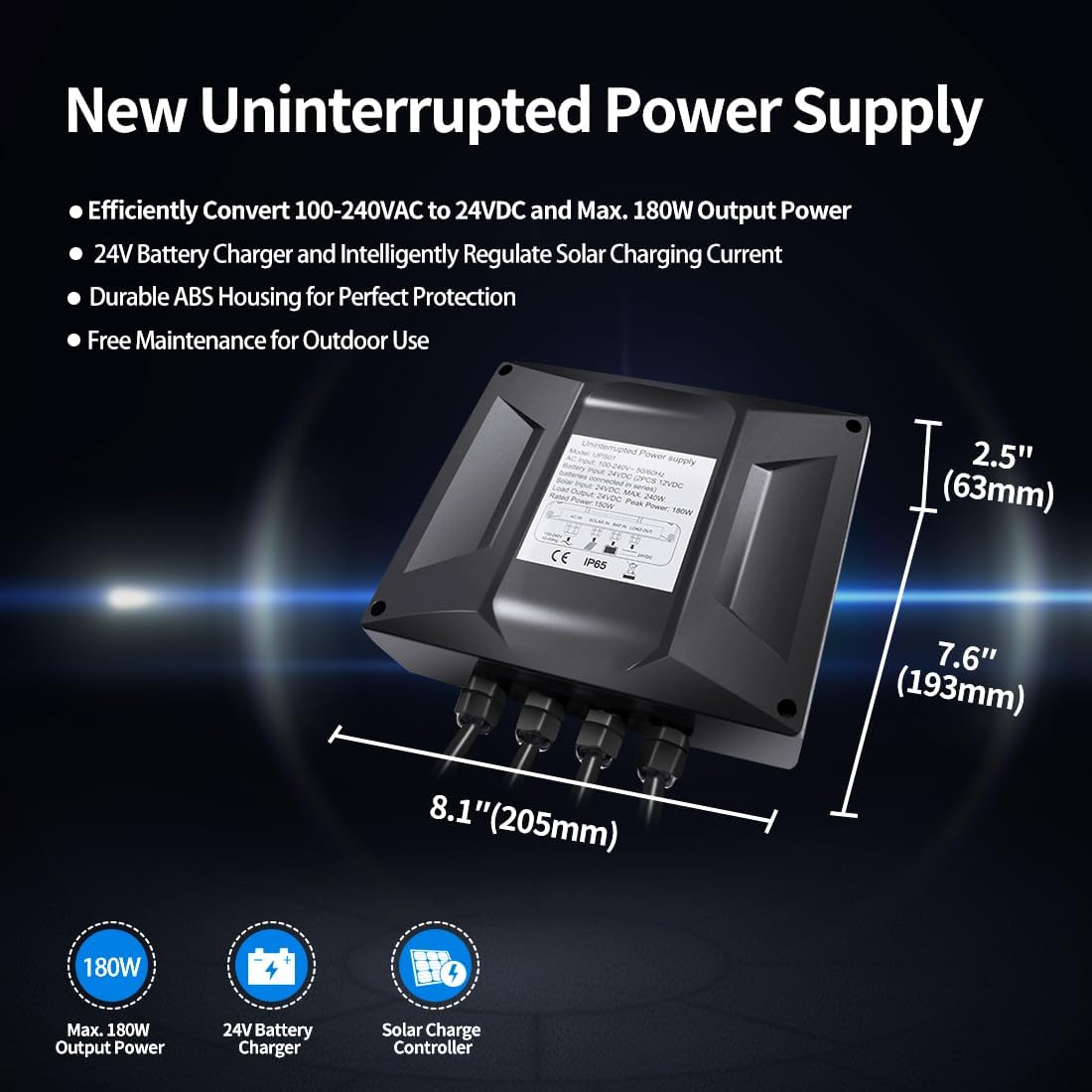

  • UPS01 dimensions 205 x 193 x 63 mm, 180 W max output
1 8

TOPENS

TOPENS UPS01 24V Power Supply with Battery Backup & Solar Charging (150W)

TOPENS UPS01 24V Power Supply with Battery Backup & Solar Charging (150W)

£109.00 GBP
£109.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Keep your automatic gate working through power cuts. The UPS01 is a 24 V DC power supply, battery charger and solar charge controller in one weatherproof box. It powers your gate opener from the mains, keeps a pair of 12 V backup batteries charged, and switches to battery power automatically if the mains fails. Add a 24 V solar panel and it will charge the batteries from the sun too.

Key features

  • Mains to 24 V DC – converts 100–240 V AC to 24 V DC, with 150 W continuous and 180 W peak output.
  • Battery backup – charges two 12 V batteries wired in series (24 V) and powers the gate from them when the mains is off.
  • Built-in solar charge controller – connect 24 V solar panels up to 240 W in total. Mains input is optional for off-grid gates.
  • Protection circuits – against short circuit, overload, over-current, over-voltage, over-heating and over-charging.
  • Outdoor-ready – IP65 sealed ABS housing, working from −20 °C to +50 °C.
  • Pre-wired – four labelled cables (AC in, solar, battery, load) with cable glands, so there is no need to open the box.

What can it power?

Any 24 V DC equipment within its rating, including:

  • 24 V gate openers and garage door openers
  • CCTV cameras and access control systems
  • 24 V LED strip lighting
  • 24 V power inverters and other DC devices

Compatible batteries

  • Lead-acid, AGM, GEL and flooded deep-cycle batteries
  • Marine and automotive batteries
  • Not suitable for lithium-ion batteries

Batteries and solar panels are not included.

Connections

AC IN 100–240 V AC, 50/60 Hz – 1.5 m, 3-core 18 AWG
SOLAR 24 V DC, max. 240 W (panels in parallel) – 1 m, 2-core 18 AWG
BAT 24 V DC (2 × 12 V in series) – 1 m, 2-core 18 AWG
LOAD 24 V DC output – 1 m, 2-core 18 AWG

Mains wiring should be carried out by a competent person in line with UK wiring regulations.

Specifications

Brand TOPENS
Model UPS01
AC input 100–240 V AC, 50/60 Hz (optional)
Output 24 V DC
Rated output 150 W, 6.25 A
Peak output 180 W, max. 10 A
Battery input 24 V DC (2 × 12 V in series)
Solar input 24 V DC, max. 240 W
Protection rating IP65
Working temperature −20 °C to +50 °C
Dimensions 205 × 193 × 63 mm

Frequently asked questions

Will my gate still work in a power cut?

Yes, as long as you connect two charged 12 V batteries. The UPS01 keeps them topped up and switches over automatically.

Can I run my gate on solar power only?

Yes. Mains input is optional – connect 24 V solar panels (up to 240 W) and batteries, and the UPS01 manages the charging.

Can I use lithium batteries?

No. Use lead-acid, AGM, GEL, flooded deep-cycle, marine or automotive batteries.

Does it work with my opener?

It works with gate openers and other devices that take a 24 V DC supply and draw no more than 150 W continuously. Check your opener's manual for its supply voltage before connecting. Openers with a built-in mains transformer, such as the CASAR800 garage door opener, plug straight into the mains and do not need the UPS01.
