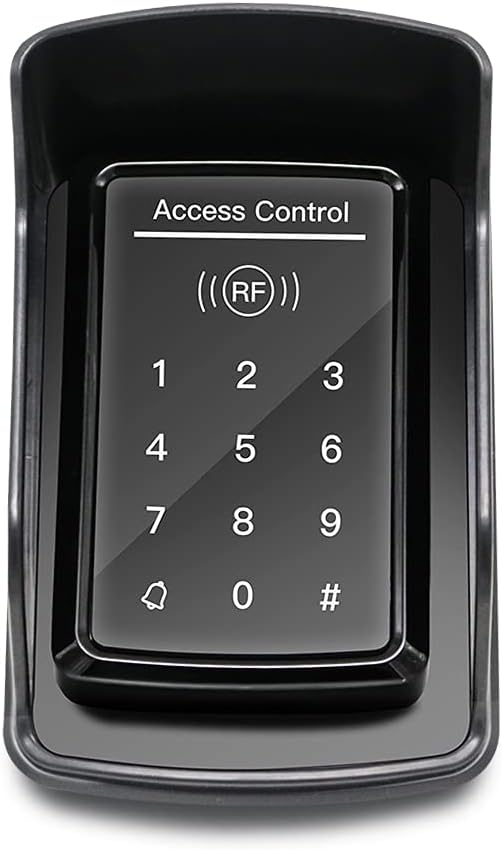

• TC175P touch keypad with RFID reader in its rain hood

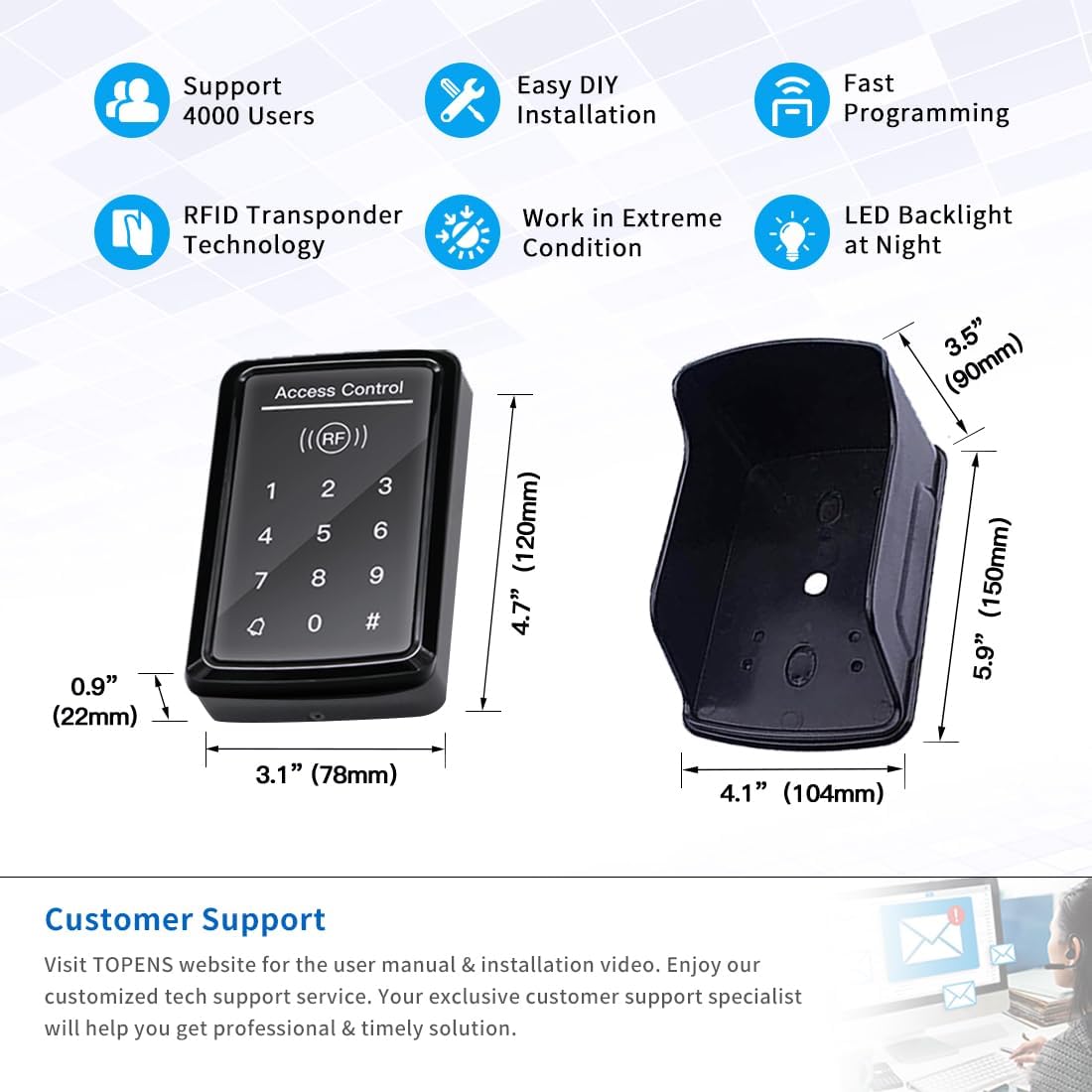

  • TC175P features and dimensions: keypad 120 x 78 x 22 mm, hood 150 x 104 x 90 mm

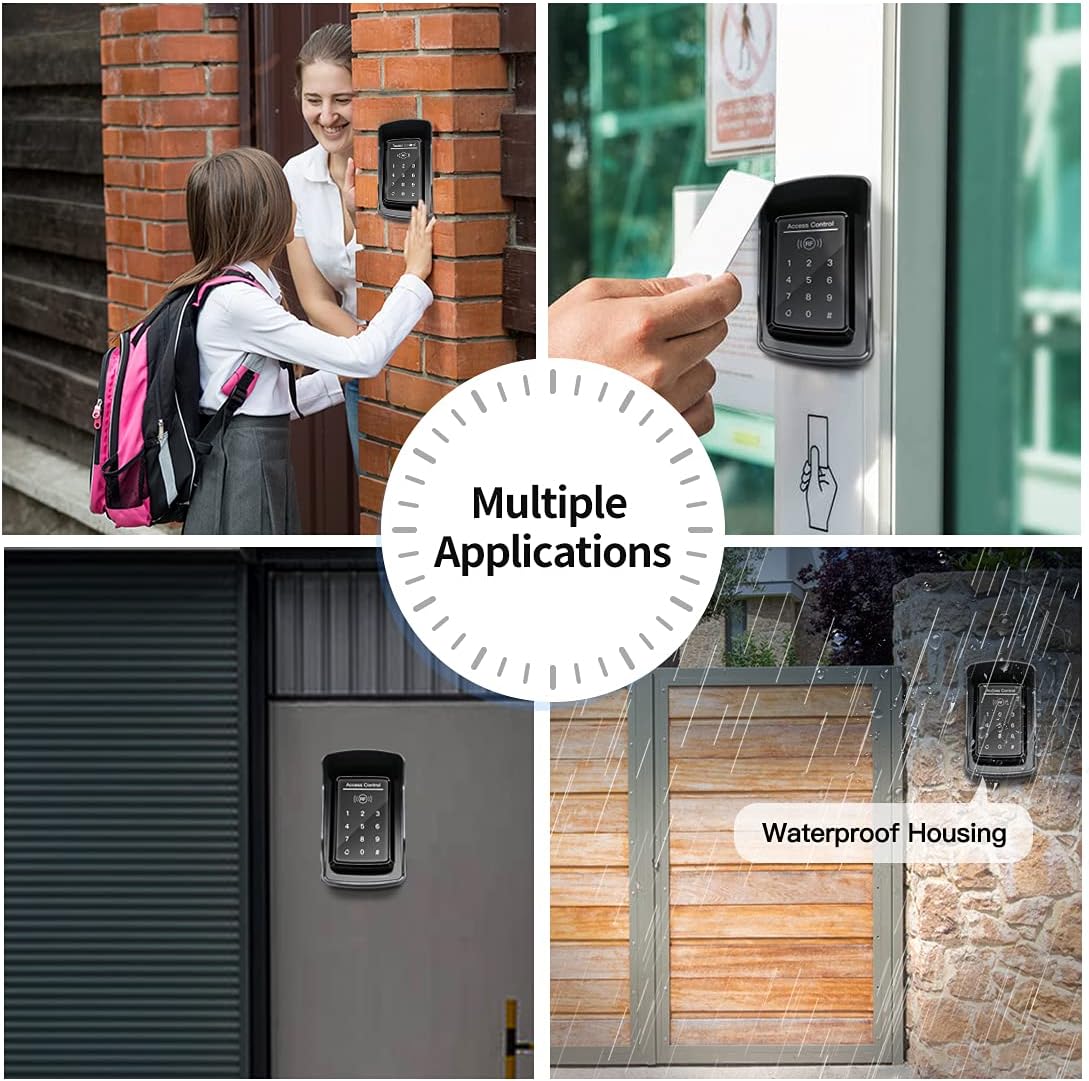

  • TC175P keypad used at homes, offices and gates

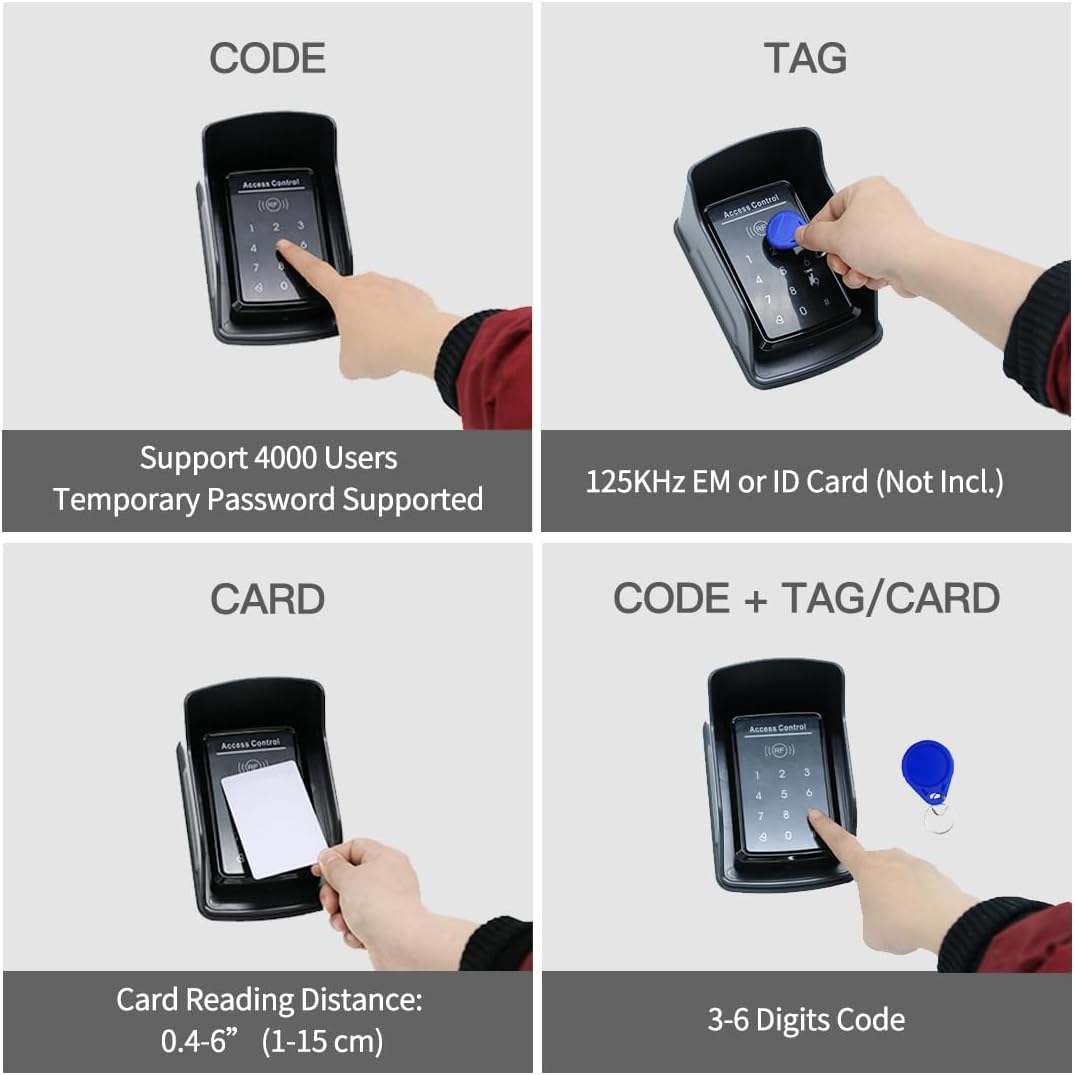

  • TC175P opening modes: PIN code, key tag, card or tag plus code

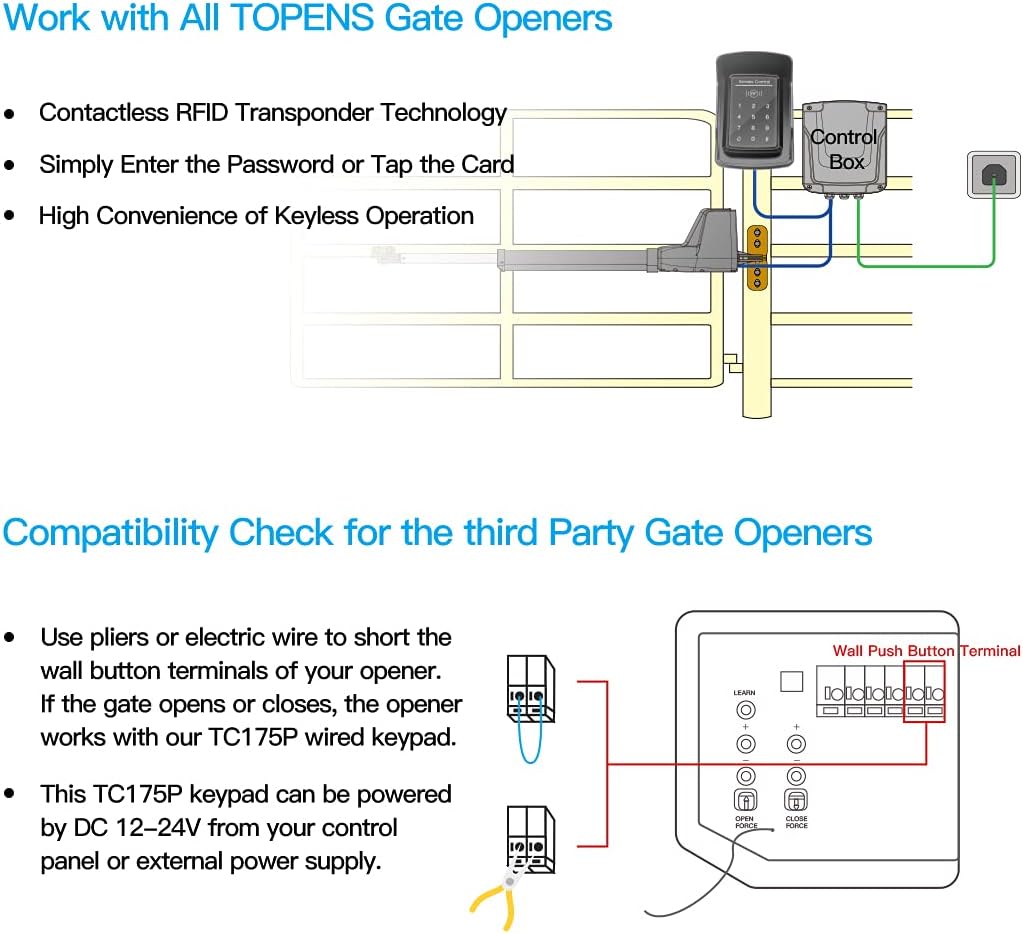

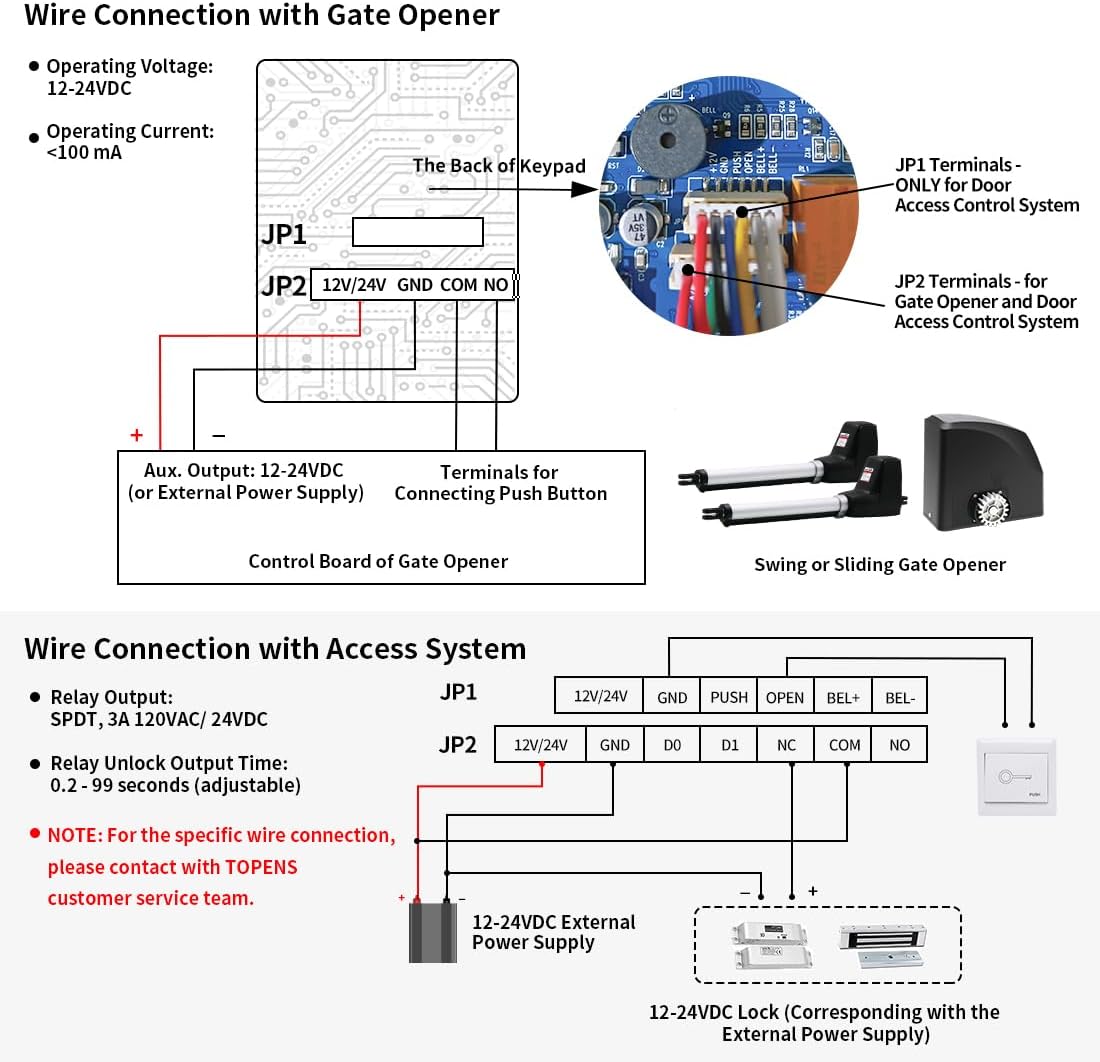

  • TC175P wiring to a gate opener and to a door access system
  • TC175P anti-tamper alarm and 5-minute lock-out
  • TC175P works with TOPENS gate openers; compatibility check for other brands

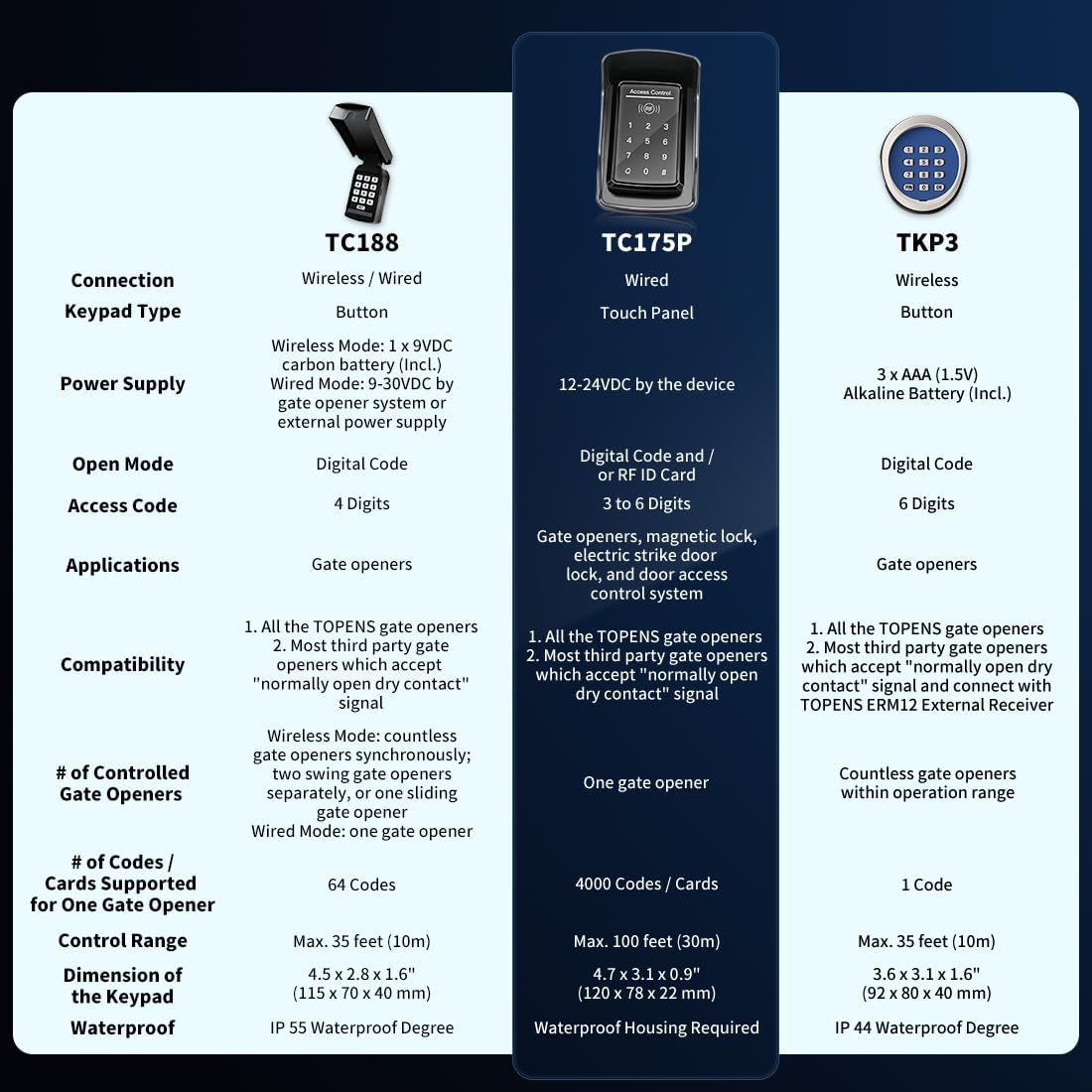

  • Comparison of TC188, TC175P and TKP3 gate keypads
1 8

TOPENS

TOPENS TC175P Wired Touch Keypad with RFID Card Reader

TOPENS TC175P Wired Touch Keypad with RFID Card Reader

£59.00 GBP
£59.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The TC175P wired keypad combines a backlit touch keypad and an RFID card reader in one slim unit. Open your gate with a PIN code, a key tag or a card – or require both for extra security. It stores up to 4,000 users, so it suits busy shared entrances as well as homes.

Because it is wired, it is a reliable choice where wireless signals suffer from interference or where the control box is a long way from the keypad.

Key features

  • Code, card or both – open by 3–6 digit PIN, by 125 kHz EM/ID card or tag, or by card plus PIN.
  • Up to 4,000 users, including temporary codes for visitors and deliveries.
  • Touch panel with LED backlight – easy to use in the dark.
  • Anti-tamper – a built-in buzzer sounds if someone tries to remove the keypad.
  • Lock-out protection – after 10 wrong codes or unknown cards, the keypad locks for 5 minutes.
  • Not just for gates – the relay output can also drive magnetic locks, electric strike locks and door access control systems, and it offers a Wiegand 26 output to work as an extra card reader.

Compatibility and wiring

  • Gate openers – works with all TOPENS gate openers and most swing or sliding gate openers whose control board accepts a "normally open dry contact" push-button signal. Connect the keypad's COM and NO terminals to the push-button terminals on the control board.
  • Power – 12–24 V DC, taken from the gate opener's auxiliary output or an external power supply.
  • Door access systems – please contact us before wiring to a lock or access system, so we can help with the correct connection.

Quick check: bridge the push-button terminals on your control board with a short wire. If the gate moves, the TC175P will work with your opener.

Installing outdoors

The keypad itself is not waterproof. Outdoors it must be fitted inside a rain hood or weatherproof housing, as shown in the product photos.

Specifications

Brand TOPENS
Model TC175P
Connection Wired
Operating voltage 12–24 V DC
Operating current < 100 mA
Relay output SPDT, 3 A 120 V AC / 24 V DC
Relay time 0.2–99 seconds (adjustable)
Access codes 3–6 digits
Card type 125 kHz EM/ID card or tag (not included)
Card reading distance 1–15 cm
Users Up to 4,000 codes/cards
Keypad dimensions 120 × 78 × 22 mm
Rain hood dimensions 150 × 104 × 90 mm

Frequently asked questions

Are cards or tags included?

No. The TC175P reads standard 125 kHz EM or ID cards and key tags, which are widely available.

How many gates can it control?

One gate opener (or one lock) per keypad.

Wired or wireless – which keypad is right for me?

Choose the TC175P if you can run a cable and want card access or many users. For a cable-free install, see the TKP3 wireless keypad or the TC188 wireless/wired keypad.
