The TC188 gate keypad gives you keyless entry with up to 64 separate PIN codes – one for each family member, plus temporary codes for visitors, cleaners or delivery drivers. Install it wireless on its 9 V battery, or wired to the gate's control board where radio signals are unreliable.
A flip-up cover protects the backlit keypad from rain and sun, and it is rated IP55 for year-round outdoor use.
Key features
-
64 access codes – 4-digit permanent and temporary codes.
-
Wireless or wired – battery powered (9 V battery included) or powered from the gate opener.
-

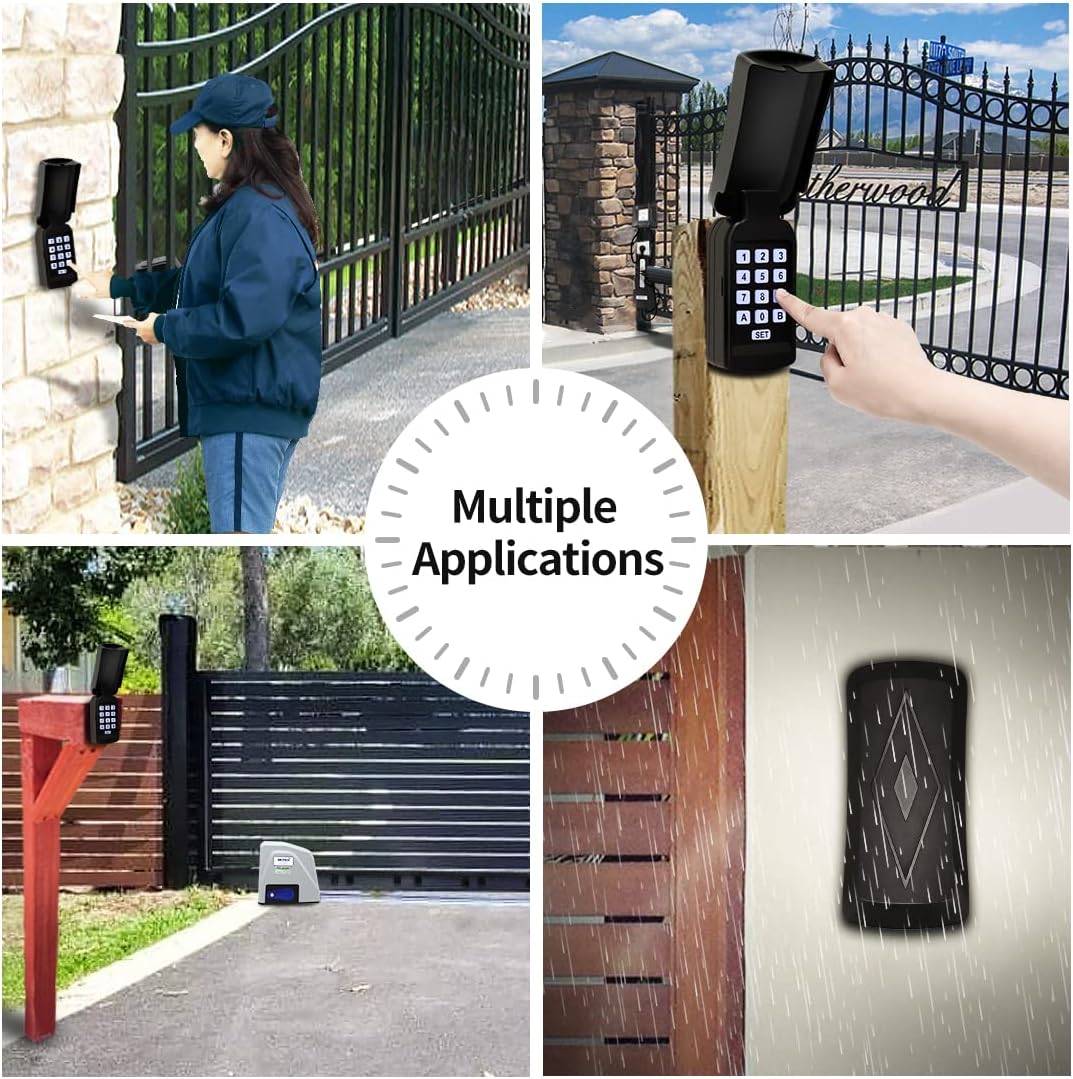

Two gates from one keypad – in wireless mode the A and B channels can control two swing gate openers separately, or one sliding gate.
-

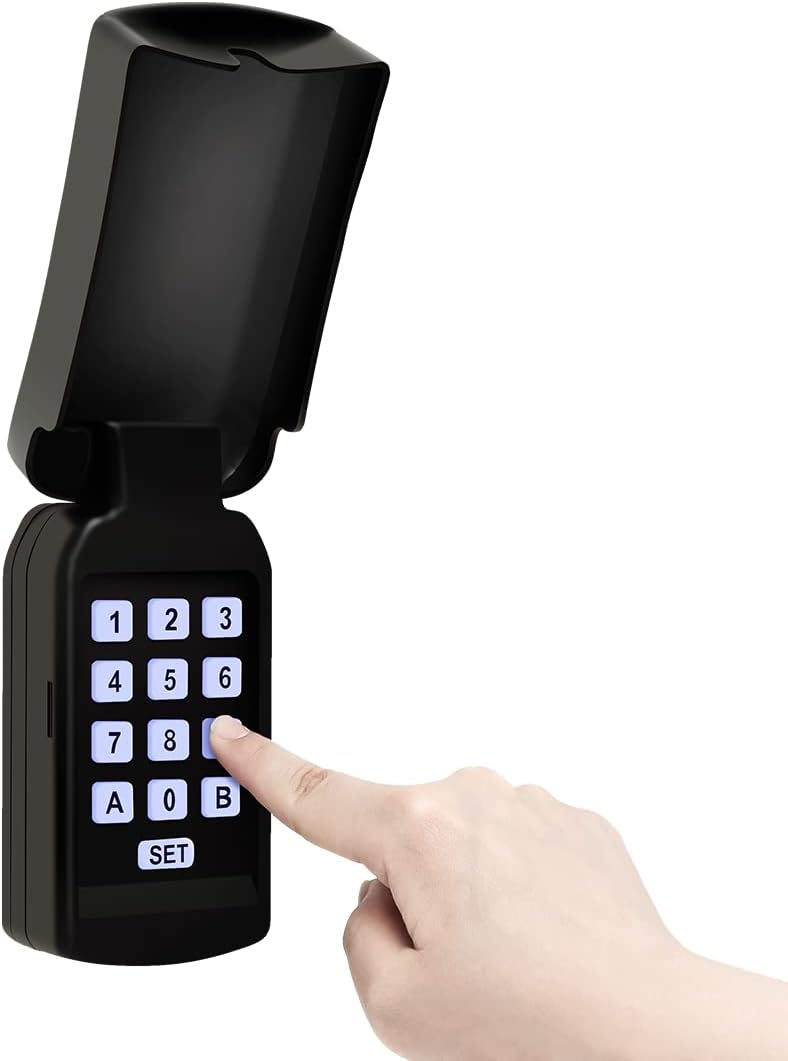

Backlit keys – automatic LED backlight in low light.
-

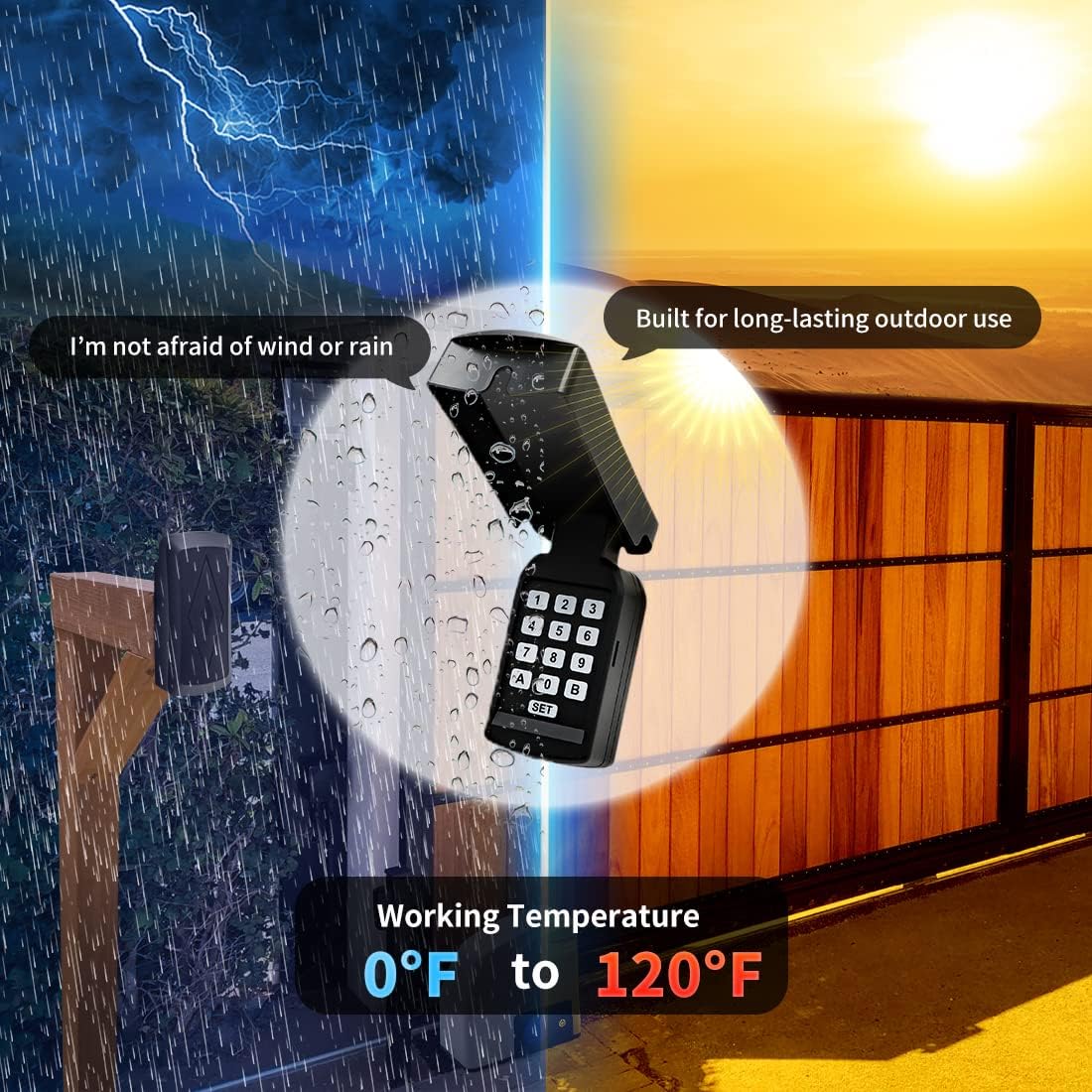

Weatherproof – IP55 housing with a protective flip cover.
-
Secure code – TOPENS encrypted security code.

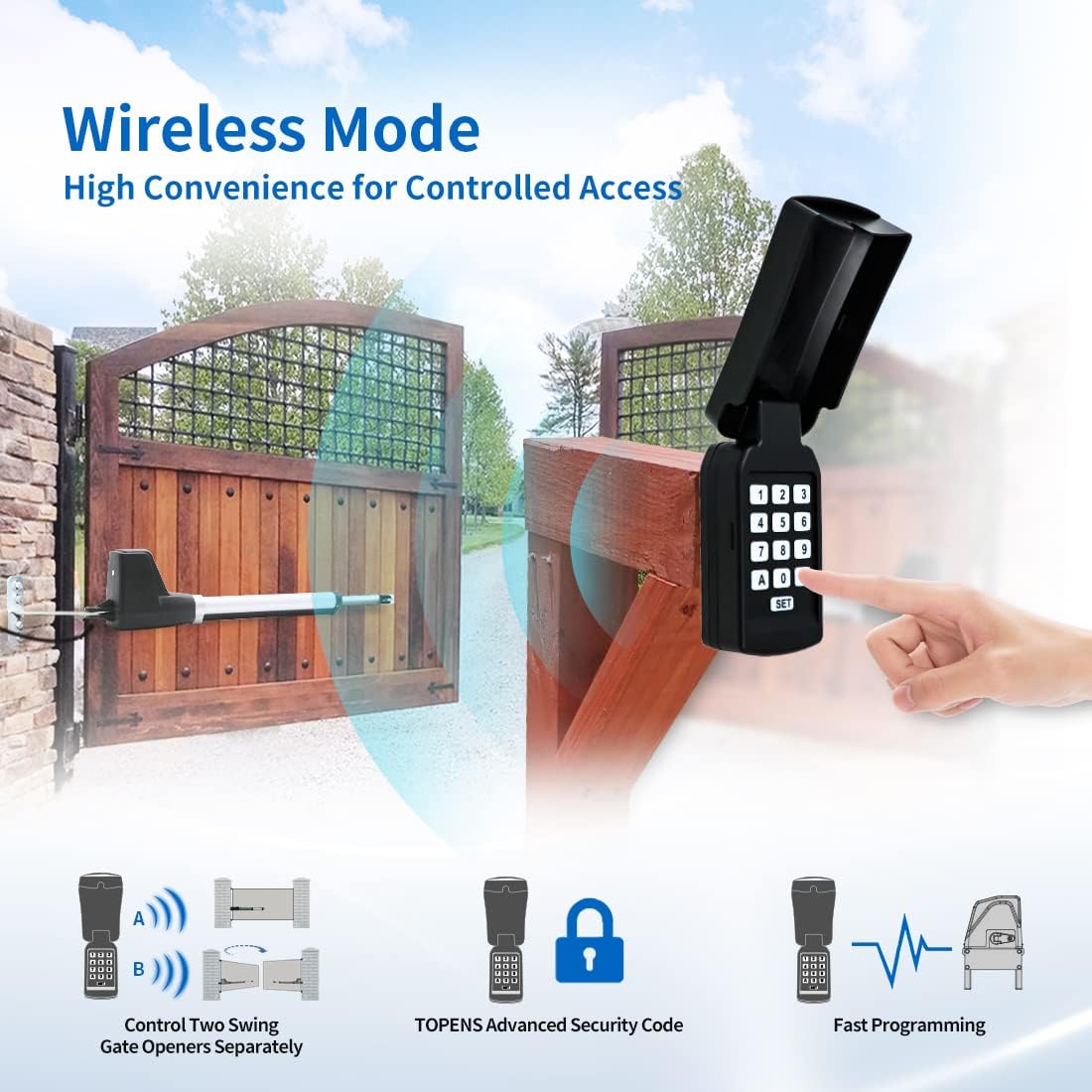

Wireless mode
The keypad runs on the included 9 V carbon battery and talks to the gate opener by radio, up to 10 metres away. It pairs directly with TOPENS gate openers. For other brands, fit a TOPENS ERM12 external receiver (sold separately) to the control board.
Wired mode

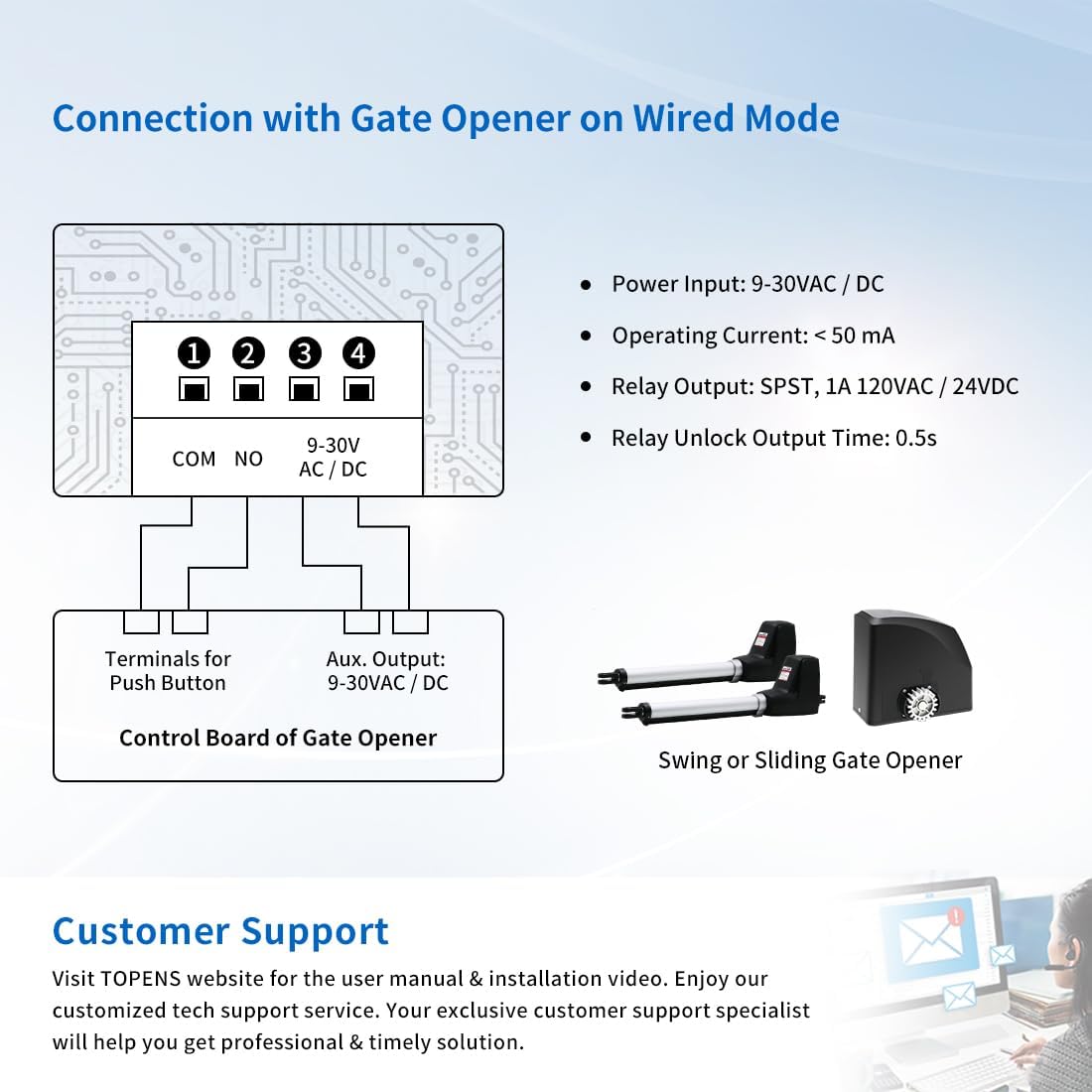

Connect the keypad's COM and NO terminals to the push-button terminals on the control board and power it with 9–30 V AC/DC from the board's auxiliary output or an external supply. This works with most swing and sliding gate openers that accept a "normally open dry contact" signal, without needing a receiver. In wired mode the keypad controls one gate opener.

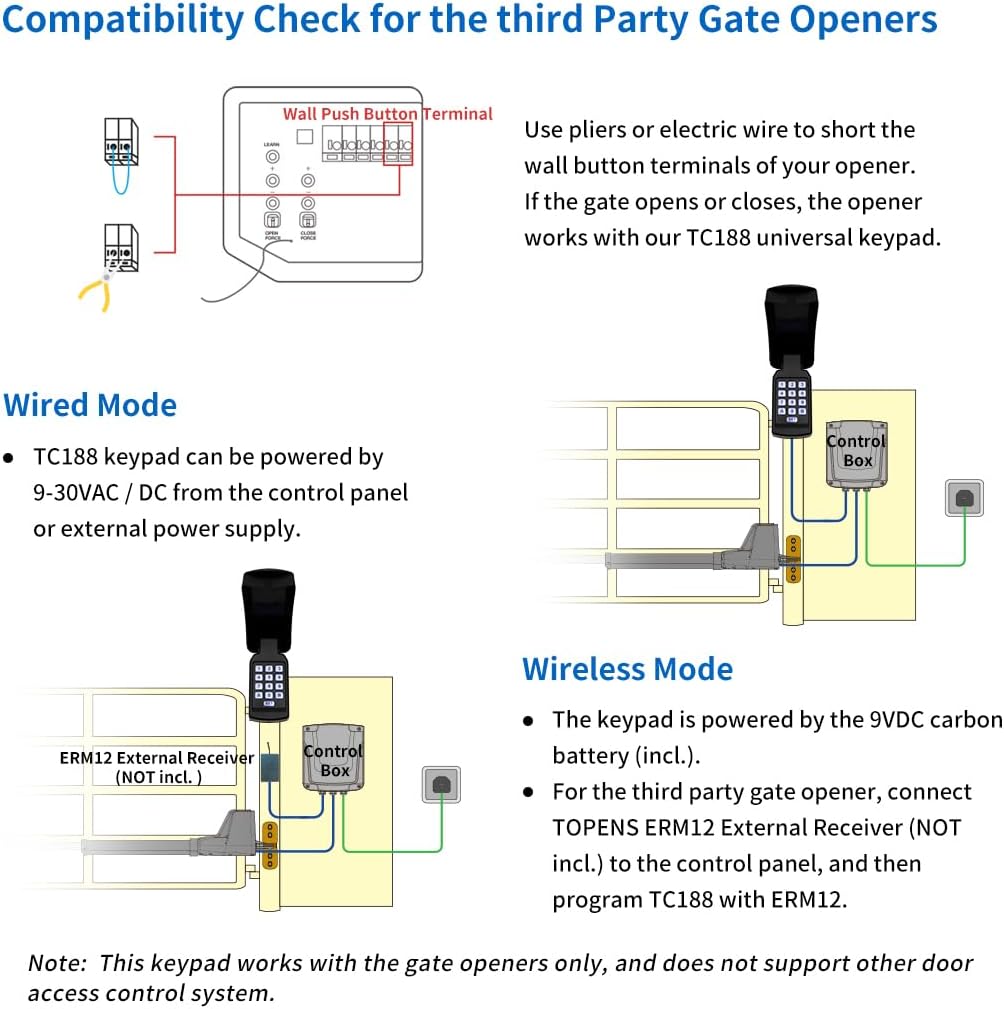

Quick check: bridge the push-button terminals on your control board with a short wire. If the gate moves, the TC188 can be wired to it.
Specifications
| Brand |
TOPENS |
| Model |
TC188 |
| Connection |
Wireless or wired |
| Power |
9 V carbon battery (included) or 9–30 V AC/DC |
| Operating current |
< 50 mA |
| Relay output (wired) |
SPST, 1 A 120 V AC / 24 V DC, 0.5 s |
| Access codes |
Up to 64 × 4-digit codes, incl. temporary codes |
| Wireless range |
Up to 10 m |
| Weather rating |
IP55 |
| Dimensions |

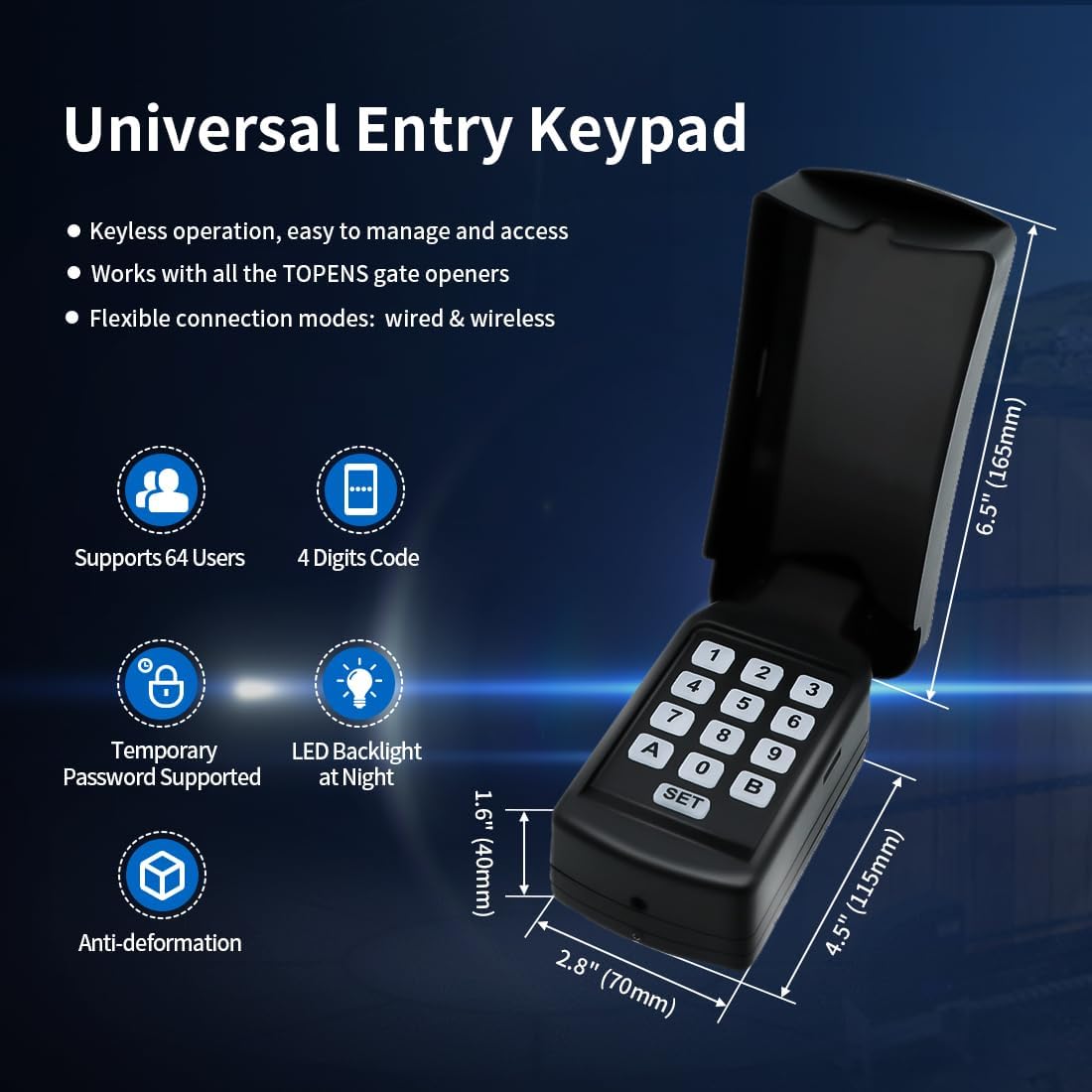

115 × 70 × 40 mm (165 mm tall with cover) |
Frequently asked questions
Can I set temporary codes for guests?
Yes. The TC188 supports temporary codes alongside your permanent ones, up to 64 in total.
Which mode should I use?
Wireless is quickest to install. Choose wired if the keypad is far from the control box or radio interference is a problem.
Can it open my front door lock?

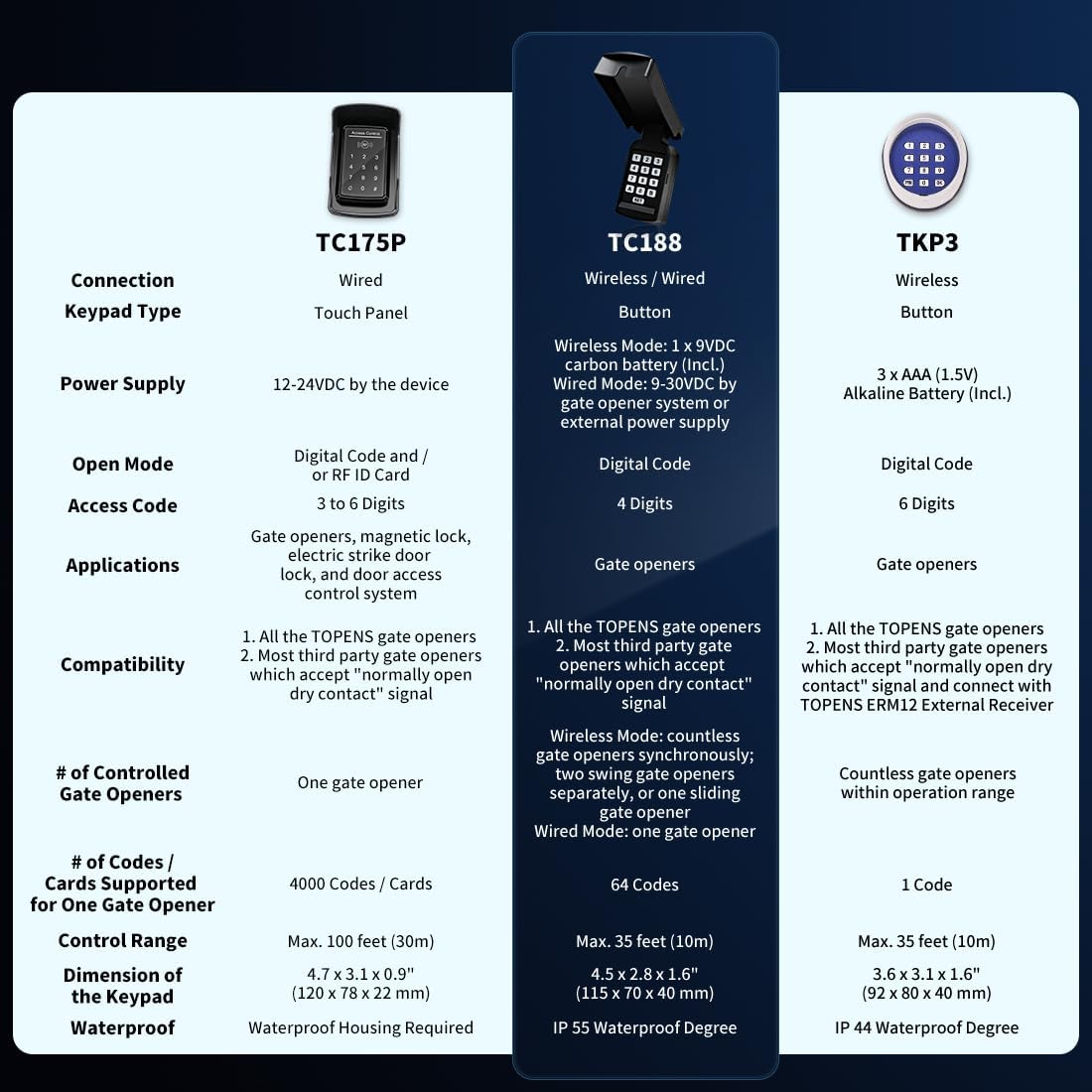

No – the TC188 is designed for gate openers. For locks and door access systems, see the TC175P keypad.
