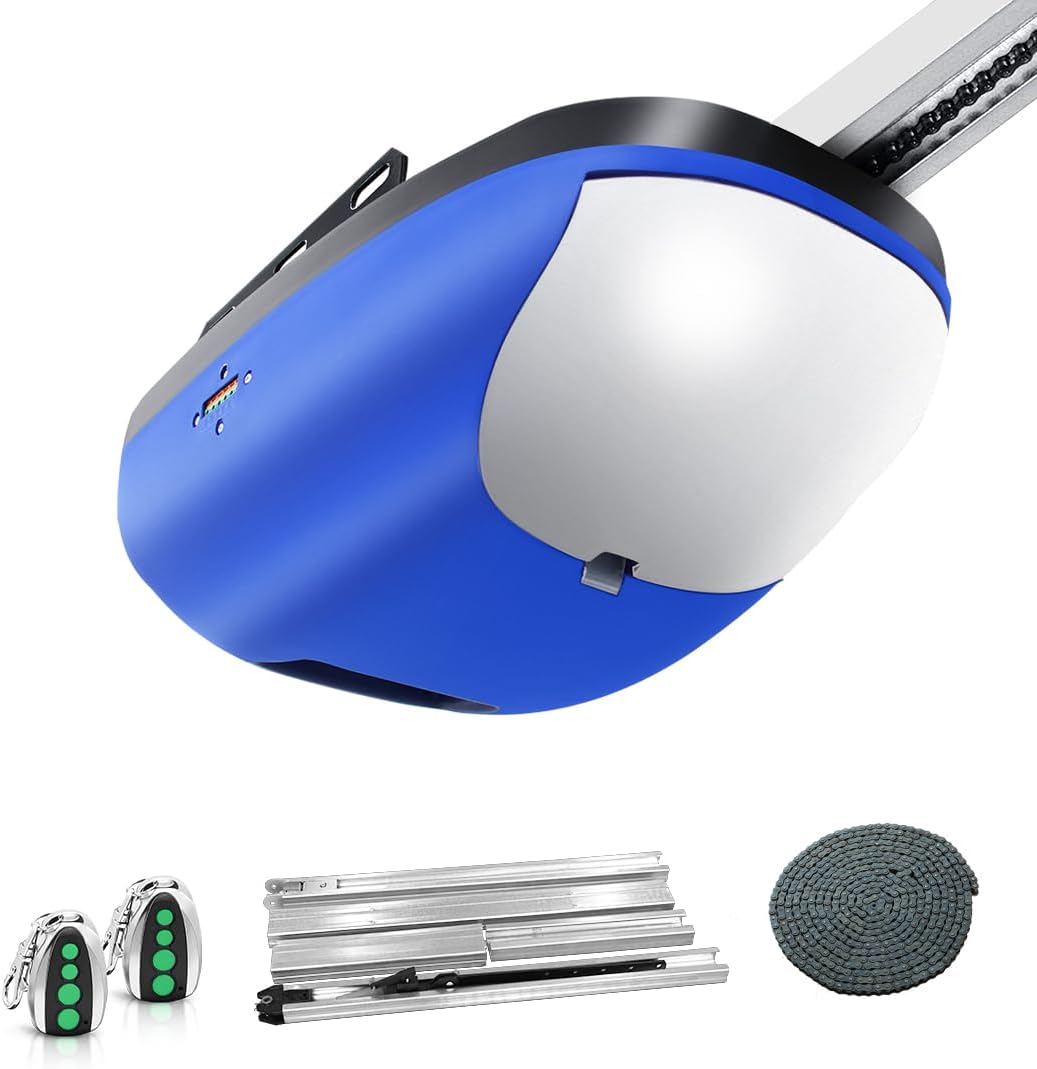

TOPENS CASAR800 Garage Door Opener 800N – Chain Drive Kit with 2 Remotes

The TOPENS CASAR800 garage door opener is a complete DIY kit for automating your garage door. Its quiet 24V DC motor and strong chain drive deliver up to 800N of lifting force – enough for sectional and up-and-over garage doors up to 2.3 metres high. The kit includes two remote controls, rail, chain and all mounting hardware.

It plugs straight into a standard UK mains socket (220–240V AC) thanks to the built-in transformer, and the numeric display walks you through every setting step by step.

Key features

• 800N lifting force – heavy-duty 24V DC motor with chain drive and steel-reinforced rail.

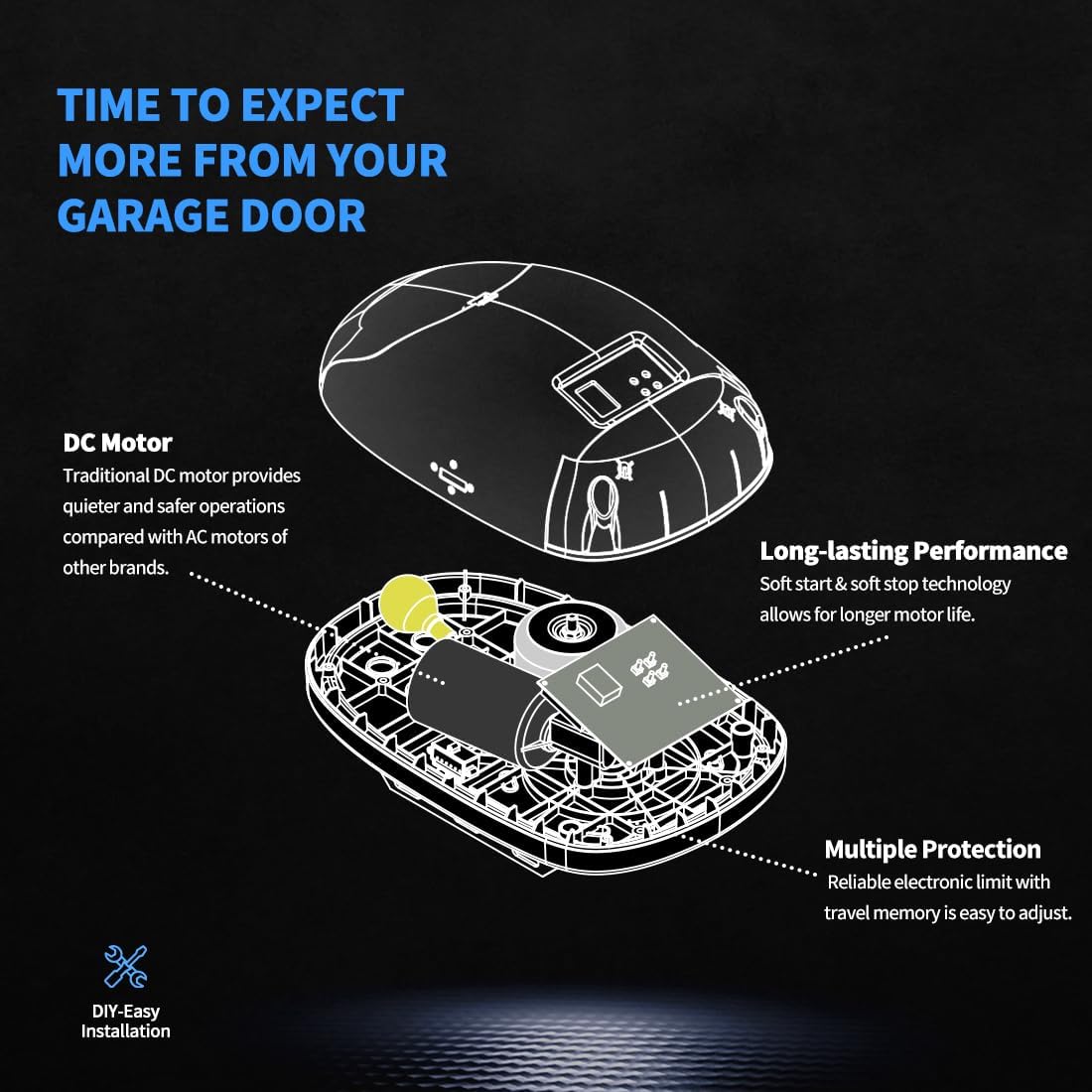

• Quiet and smooth – DC motor with soft start and soft stop runs quieter than AC openers and extends motor life.
• Safety auto-reverse – the door reverses automatically if it meets an obstruction while closing.
• Secure rolling code – microchip rolling code stops remote signals being copied.
• Adjustable settings – electronic travel limits with position memory, adjustable opening and closing force, and auto-close after 1–9 minutes.
• Power cut ready – manual release rope and handle let you open the door by hand.
• 4-button remotes – each pre-programmed remote can control up to four openers separately.
• Easy DIY installation – sleeve-connected rail sections, no welding needed, with a step-by-step manual.

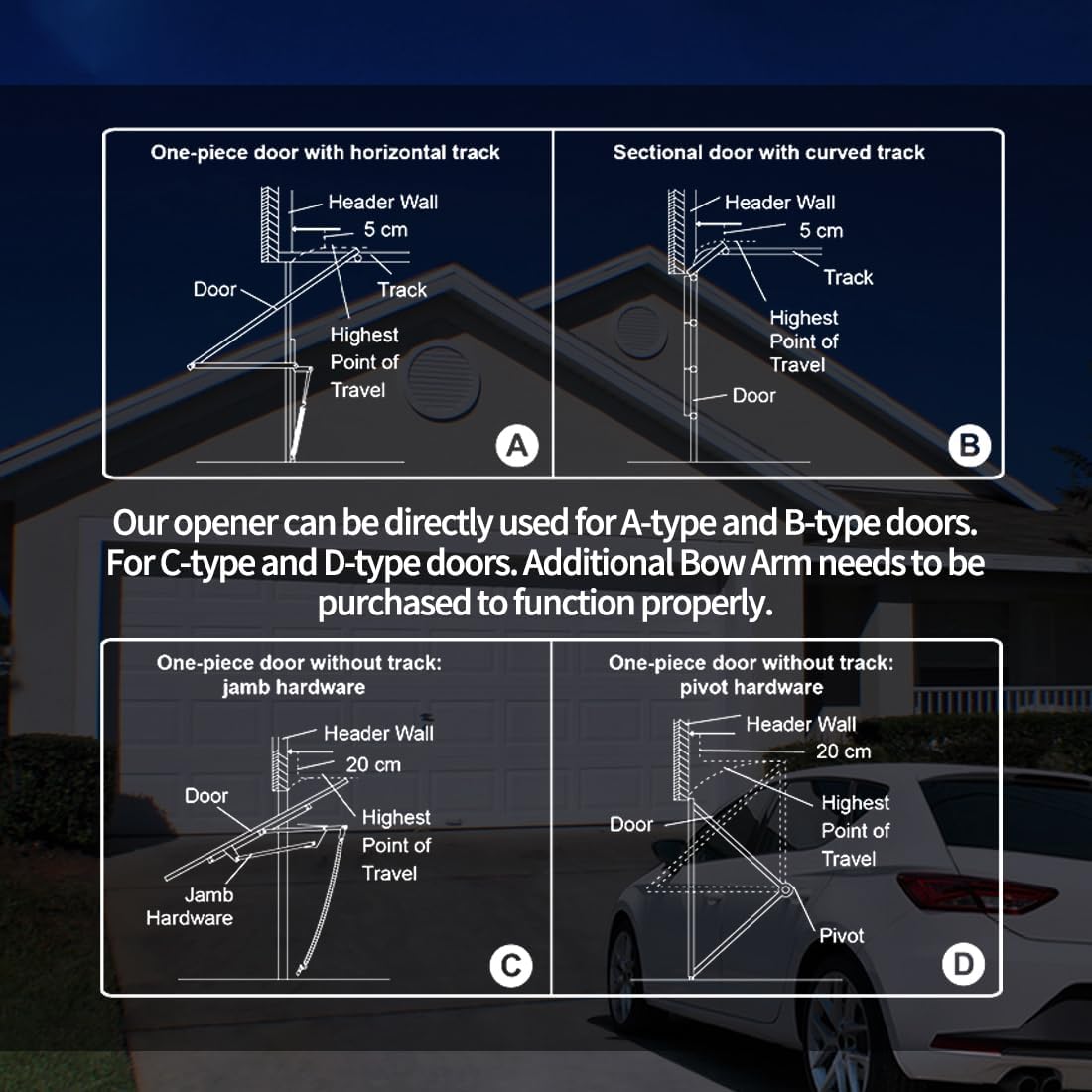

Which garage doors does it fit?

The CASAR800 works directly with:

• Sectional doors with a curved track
• One-piece (up-and-over) doors with a horizontal track

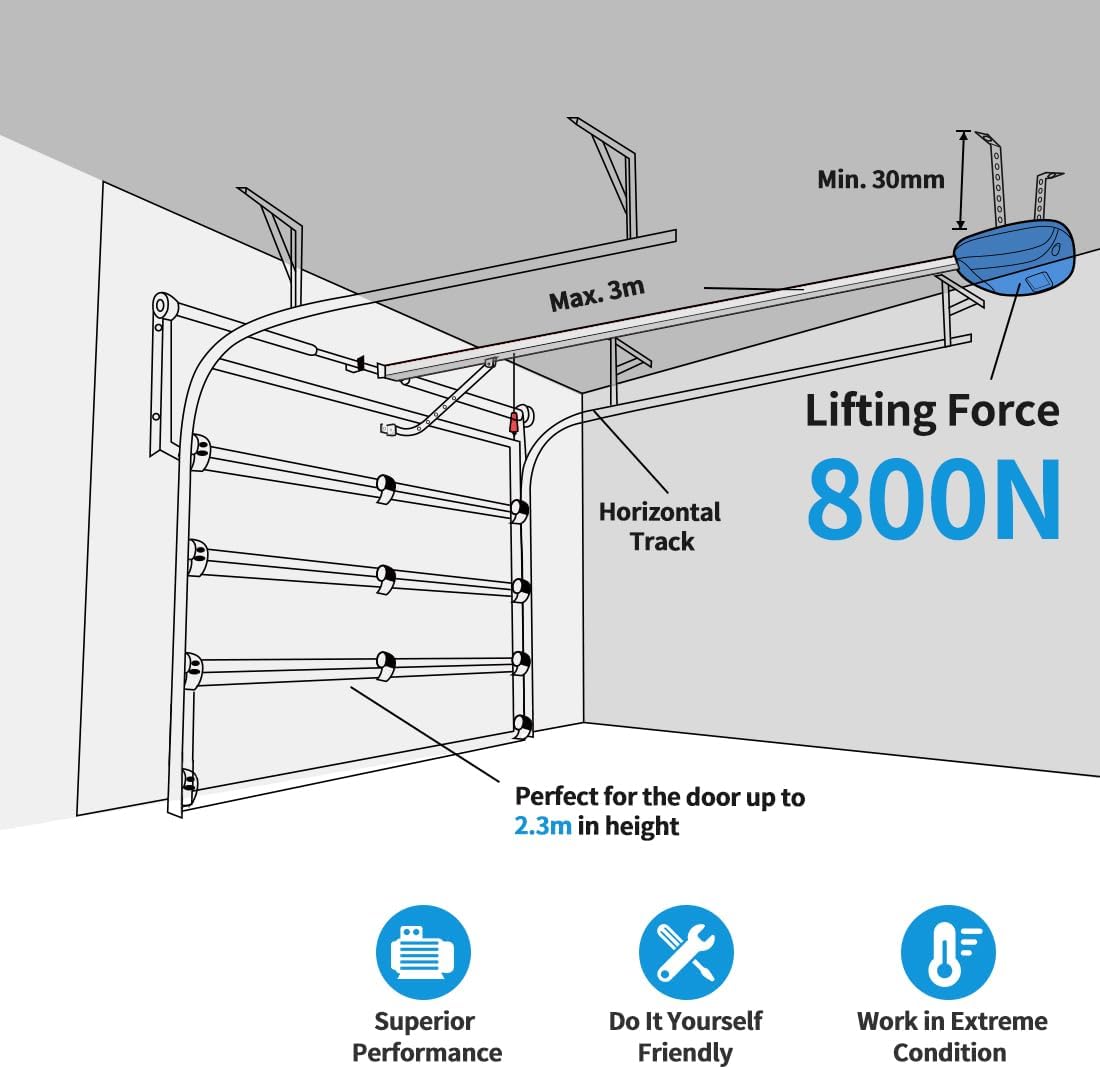

For one-piece doors without a track (jamb or pivot hardware) an additional bow arm is required. The door must be no more than 2.3 m high, and you need at least 30 mm of clearance above the highest point of the door's travel to mount the rail.

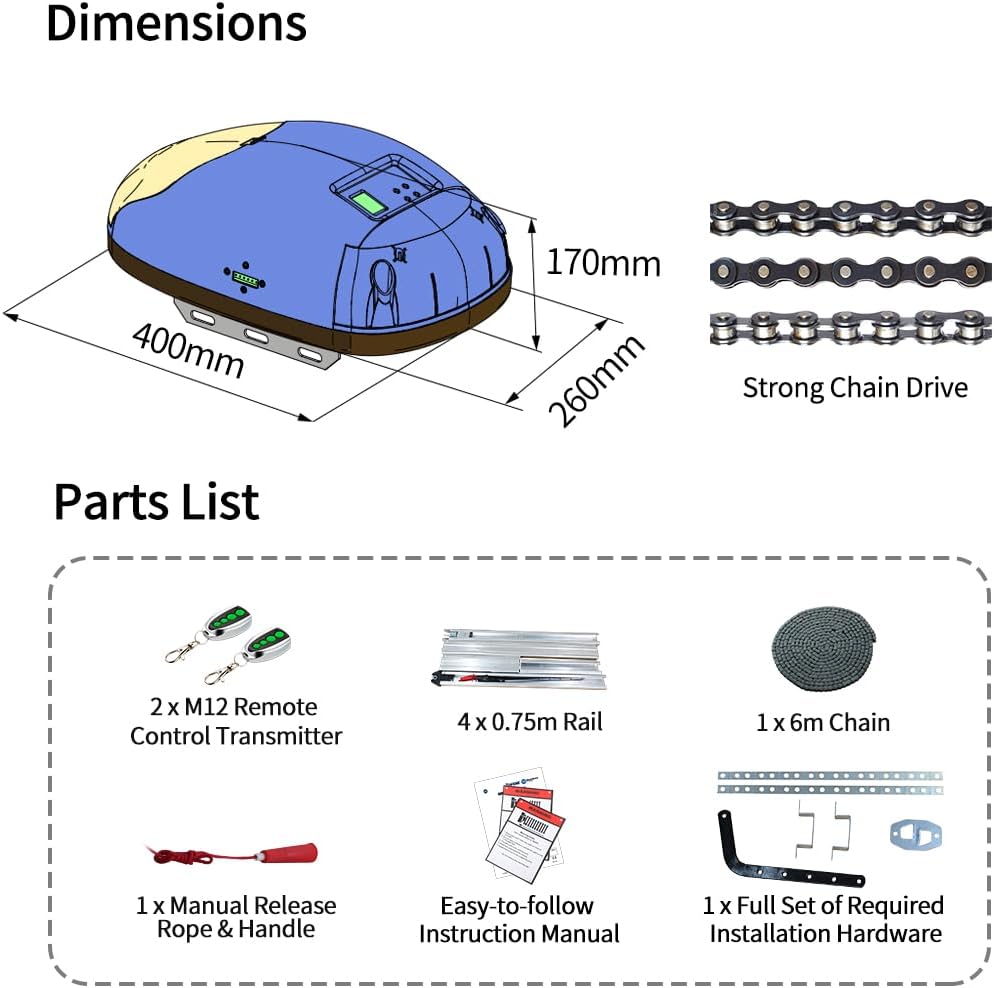

What's in the box

• 1 × CASAR800 opener unit
• 2 × M12 remote control transmitters
• 4 × 0.75 m rail sections (3 m total)
• 1 × 6 m drive chain
• 1 × manual release rope and handle
• 1 × full set of installation hardware
• Instruction manual

Specifications

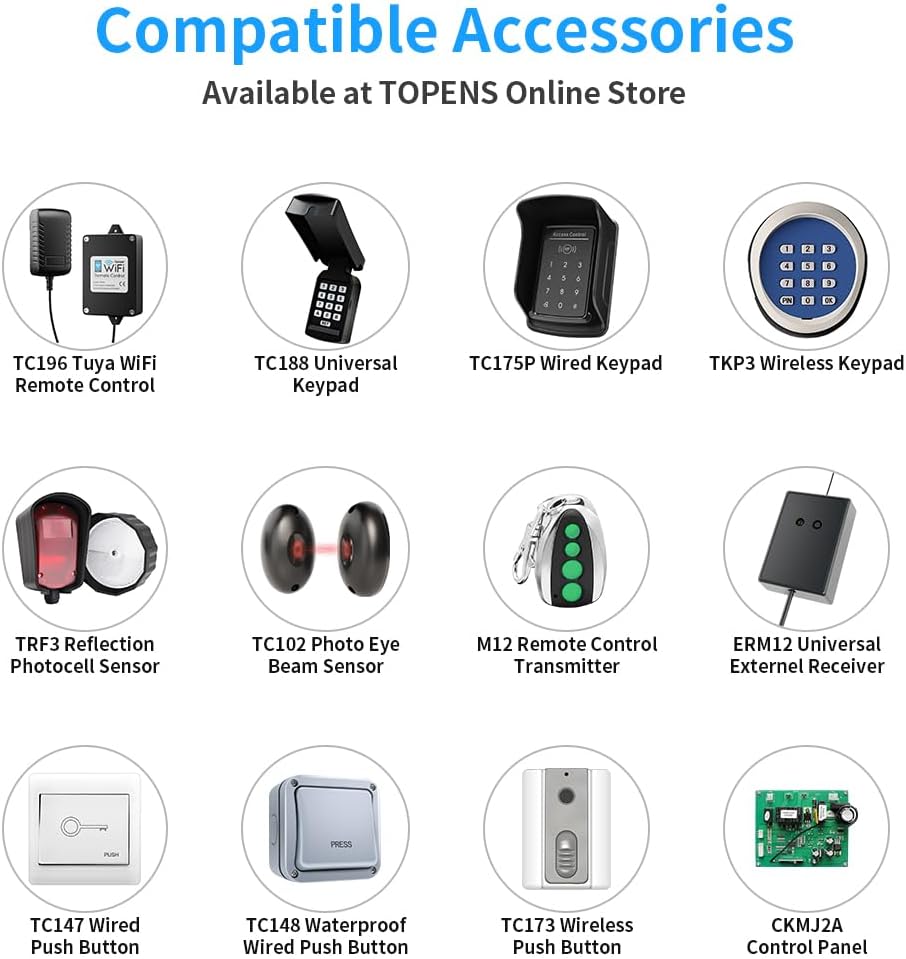

Compatible accessories

• TOPENS TC102 safety photocell sensor – extra protection for cars, people and pets under the door.
• TOPENS M12 remote control – spare or additional remotes for the family.
• TOPENS TC196 Tuya WiFi controller – open your garage door from your phone.
• TOPENS TC188 keypad or TKP3 wireless keypad – PIN code entry without a remote.
• TOPENS TC175P touch panel keypad – wired keypad with touch panel.
• TOPENS TC148 wall push button – open the door from inside the garage.

Frequently asked questions

Will the CASAR800 fit my garage door?

It fits sectional doors with a curved track and up-and-over doors with a horizontal track, up to 2.3 m high. Up-and-over doors without a track need an additional bow arm.

Can I install it myself?

Yes. The rail slots together with sleeve connectors, no welding is needed, and all mounting hardware and a step-by-step manual are included.

What happens in a power cut?

Pull the manual release rope to disconnect the opener and lift the door by hand.

Does it need a special power supply?

No. The transformer is built in, so it plugs into a standard 220–240V mains socket.

Is it safe for children and pets?

The opener reverses automatically if it detects an obstruction while closing. For extra protection, add the TC102 safety photocell.
